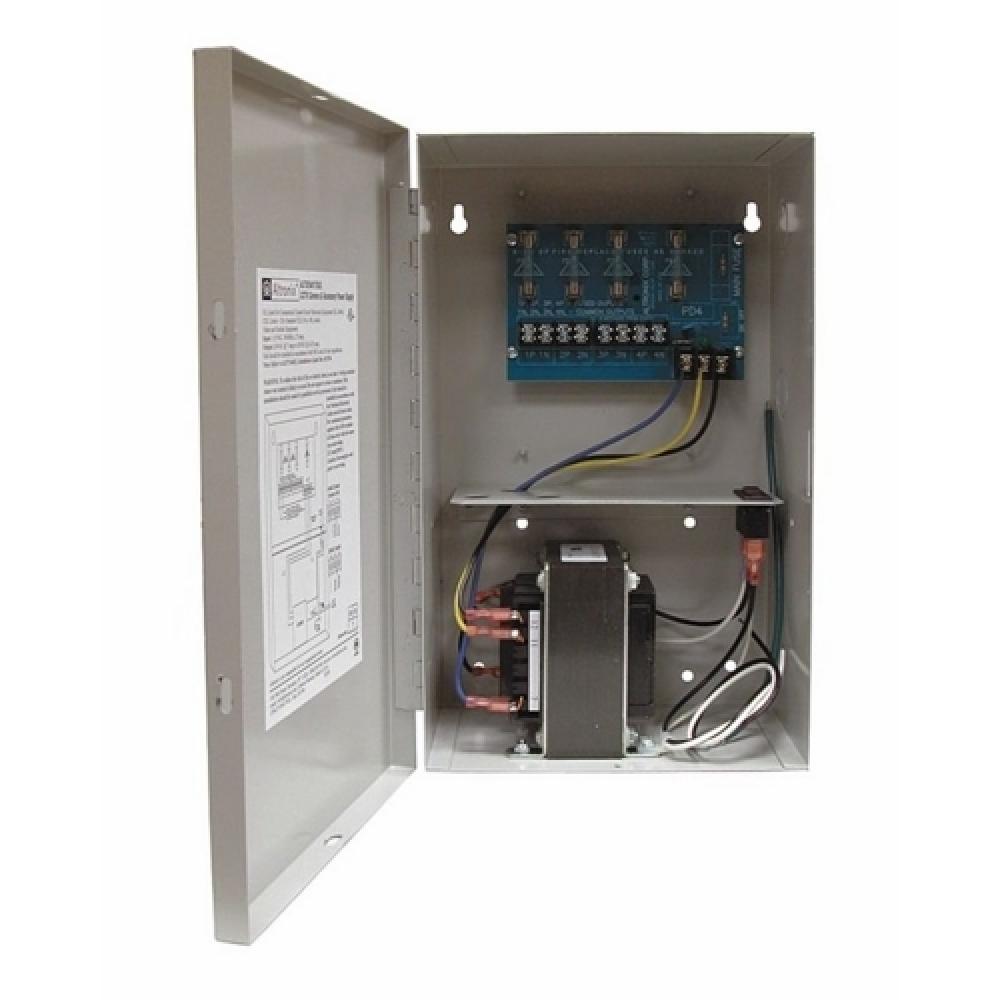

CCTV POWER SUPPLY,4 CH,24 VAC, 7 AMP by Altronix
Call For Price
- Part Number: ALTV244175UL
- UPC: 00782239936779
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
CCTV Power Supply, Voltage Rating: Input: 115 VAC, Output: 24 VAC/28 VAC, Amperage Rating: Input: 2.7 AMP, Output: 7 AMP At 24 VAC/6.25 AMP At 28 VAC, 50/60 HZ, Fuse Rating: Primary 3.5 AMP, Secondary Fuse Rated At 10 AMP/250 V, Number Of Receptacles: 4, Steel, Wall Mount, Operating Temperature: 0 - 49 DEG C Ambient, 12-1/4 IN Length, 7-1/4 IN Width, 4-1/2 IN Height, 170 VA At 24 VAC, 175 VA At 28 VAC, 85.99 BTU/HR At 24 VAC, 89.57 BTU/HR At 28 VAC, CE Certified, UL 2044 Listed For Commercial CCTV Equipment, CUL Listed And CSA C22.2 No.1-98 Certified For Audio, Video And Similar Equipment, RoHS Complaint, For Powering CCTV Cameras, Heaters And Other Video Accessories
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Electrical Subtype:
Power Supply Units
Height:
4-1/2
Length:
12-1/4
Material:
Steel
Voltage Rating:
Input: 115 VAC, Output: 24 VAC/28 VAC
Width:
7-1/4
Amperage Rating:
Input: 2.7 AMP, Output: 7 AMP At 24 VAC/6.25 AMP At 28 VAC
Application:
For Powering CCTV Cameras, Heaters And Other Video Accessories
Brand Name:
Altronix
Country Of Origin:
USA
Environmental Conditions:
Operating Temperature: 0 - 49 DEG C Ambient
Frequency Rating:
50/60
Fuse Rating:
Primary: 3.5 AMP, Secondary: 10 AMP/250 V
Mounting:
Wall
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Special Features:
(4) fuse protected outputs; 24 VAC at 7 AMP (170 VA) supply current (1.75 AMP per device, 3.5 AMP maximum) or 28 VAC at 6.25 AMP (175 VA) supply current (1.56 AMP per device, 3.5 AMP maximum); Surge suppression; System AC input VA requirement 340.5 VA; AC
Type:
CCTV Power Supply
UNSPSC:
39121004
Manufactured By:
Altronix
