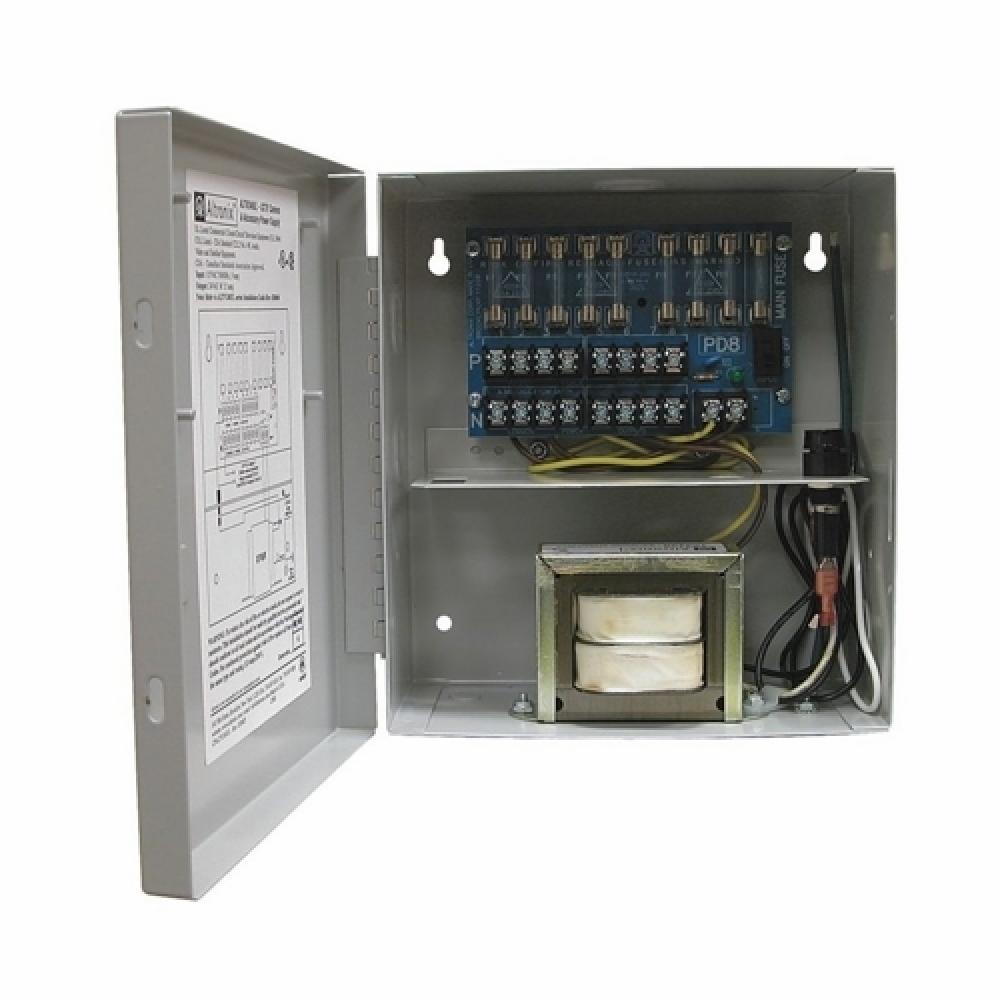

CCTV POWER SUPPLY,8 CH,24 VAC,3.5 AMP by Altronix
Call For Price
- Part Number: ALTV248UL
- UPC: 00782239931415
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
CCTV Power Supply, Voltage Rating: Input: 115 VAC, Output: 24 VAC/28 VAC, Amperage Rating: Input: 0.9 AMP, Output: 3.5 AMP At 24 VAC/3 AMP At 28 VAC, 50/60 HZ, Fuse Rating: Primary 3.5 AMP, Secondary Fuse Rated At 5 AMP/250 V, Number Of Receptacles: 8, Steel, Wall Mount, Operating Temperature: 0 - 49 DEG C Ambient, 8-1/2 IN Length, 7-1/2 IN Width, 3-1/2 IN Height, 85 VA, 49.99 BTU/HR, CE Certified, UL 2044 Listed For Commercial CCTV Equipment, CUL Listed And CSA C22.2 No.1-98 Certified For Audio, Video And Similar Equipment, RoHS Complaint, For Powering CCTV Cameras, Heaters And Other Video Accessories
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Electrical Subtype:
Power Supply Units
Height:
3-1/2
Length:
8-1/2
Material:
Steel
Voltage Rating:
Input: 115 VAC, Output: 24 VAC/28 VAC
Width:
7-1/2
Amperage Rating:
Input: 0.9 AMP, Output: 3.5 AMP At 24 VAC/3 AMP At 28 VAC
Application:
For Powering CCTV Cameras, Heaters And Other Video Accessories
Brand Name:
Altronix
Country Of Origin:
USA
Environmental Conditions:
Operating Temperature: 0 - 49 DEG C Ambient
Frequency Rating:
50/60
Fuse Rating:
Primary: 3.5 AMP, Secondary: 5 AMP/250 V
Mounting:
Wall
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Special Features:
(8) fuse protected outputs; 24 VAC at 3.5 AMP (85 VA) supply current (0.438 AMP per device, 3.5 AMP maximum) or 28 VAC at 3 AMP (85 VA) supply current (0.375 AMP per device, 3.5 AMP maximum); Surge suppression; System AC input VA requirement 103.5 VA; AC p
Type:
CCTV Power Supply
UNSPSC:
39121004
Manufactured By:
Altronix
