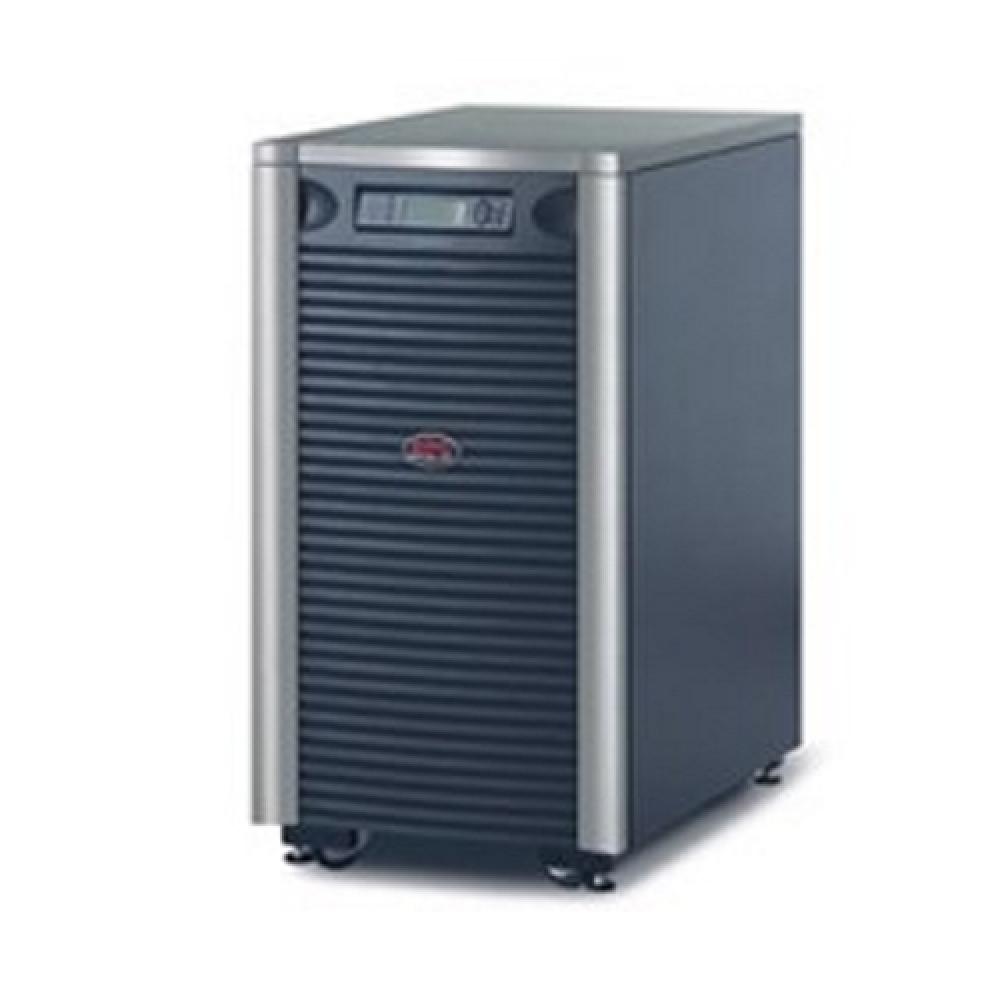

APC SYA12K16P SYMMETRA LX PWRPROT by American Power Conversion
Call For Price
- Part Number: SYA12K16P
- UPC: 00731304221524
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
American Power Conversion SYA12K16P Symmetra Dual Conversion Online UPS, Wattage: Output Power: 9600 WTT/12 kVA, Configurable Power: 12.8 KW/16 kVA, Voltage Rating: Output: 120/208 V, Input: 208 V, Frequency Rating: 47 - 63 HZ Output, 45 - 65 HZ Input, Back-Up Time: 16.8 MINT (4.8 KW Half Load), 6 MINT (9.6 KW Full Load), Battery: 3 HR Recharge Maintenance-Free Sealed Lead-Acid Battery With Suspended Leak Proof Electrolyte, Interface: DB-9 RS-232 Port, (1) Smart-Slot, Tower Mounting, Environmental Conditions: 0 - 40 DEG C Operating Environment, 0 - 95 PCT Operating Relative Humidity, 0 - 3000 MR Operating Elevation, -15 to 45 DEG C Storage Temperature, 0 - 95 PCT Storage Relative Humidity, 0 - 4500 MR Storage Elevation, 62 dBA Audible noise at 1 MR from surface of unit, 4995.00 BTU/hr Online Thermal Dissipation, 726 MM Length, Width 483 MM, Height 937 MM, Connection: Hard Wire 4-wire (2PH + N + G), Black/Silver, CSA, FCC Part 15 Class A, UL 1778
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment
Voltage Regulation
Electrical Subtype:
Uninterruptible Power Supply UPS
UPS Systems
Height:
937
Length:
726
Voltage Rating:
Output: 120/208 V, Input: 208 V
Wattage:
Output Power: 9600 WTT/12 kVA, Configurable Power: 12.8 KW/16 kVA
Width:
483
Back-Up Time:
16.8 MINT (4.8 KW Half Load), 6 MINT (9.6 KW Full Load)
Battery:
3 HR Recharge Maintenance-Free Sealed Lead-Acid Battery With Suspended Leak Proof Electrolyte
Brand Name:
American Power Conversion
Country Of Origin:
USA
Environmental Conditions:
0 - 40 DEG C Operating Environment, 0 - 95 PCT Operating Relative Humidity, 0 - 3000 MR Operating Elevation, -15 to 45 DEG C Storage Temperature, 0 - 95 PCT Storage Relative Humidity, 0 - 4500 MR Storage Elevation, 62 dBA Audible noise at 1 MR from surface
Frequency Rating:
47 - 63 HZ Output, 45 - 65 HZ Input
Interface:
DB-9 RS-232 Port, (1) Smart-Slot
Mounting:
Tower
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Special Features:
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules; Configurable for N+1 internal redundancy; Redundant Intelligence Modules; Hot-swappable intelligence modules; Hot-swappable power modules; Hot
Sub Brand:
Symmetra
Type:
Dual Conversion Online UPS
UNSPSC:
39121011
Manufactured By:
American Power Conversion
