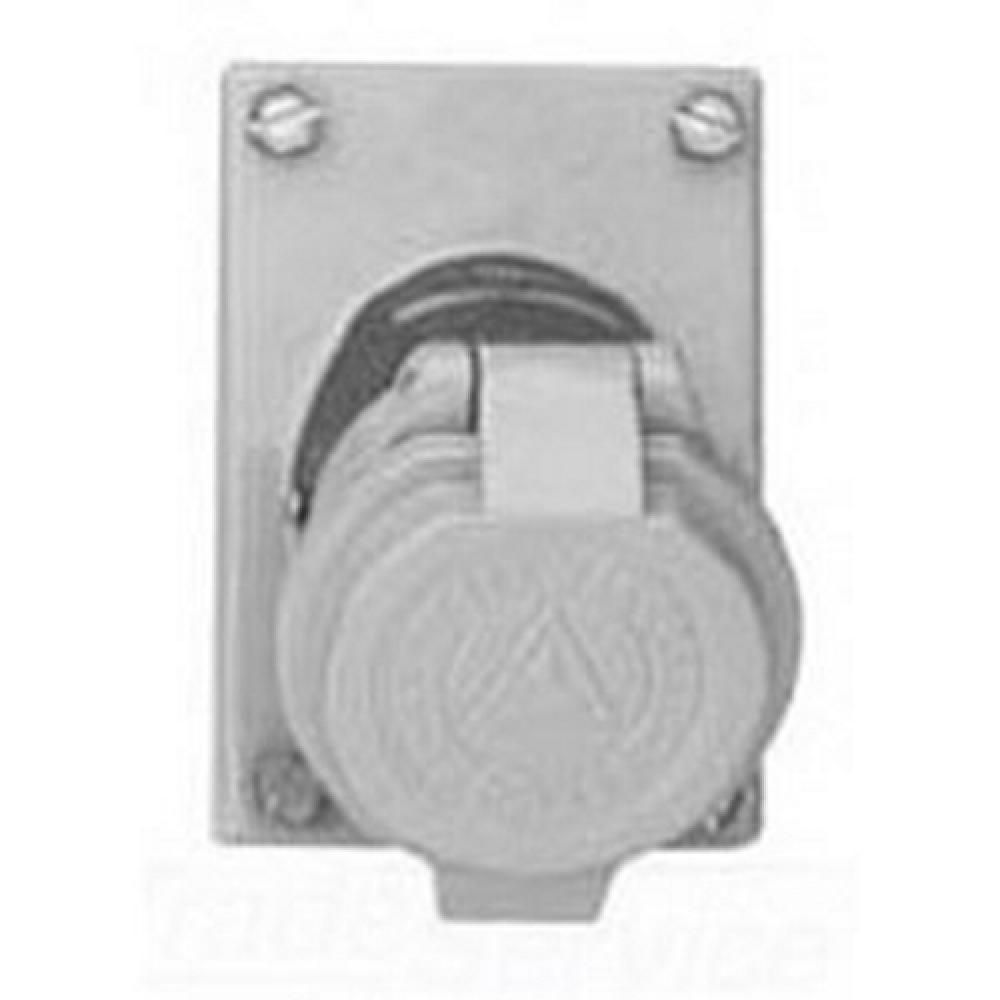

20A 2W 3P RECEPT FOR CPP516 by Appleton Electric
$
489
18
/ EA
/ 1 EA
- Part Number: CPS152R
- UPC: 00781381000314
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Contender CPS Series 1-Gang Receptacle, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 - 250 VAC, 18 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box, Moun
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
For CPP516 Plug
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box
Mounting:
Box
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Explosionproof, delayed action; CPS factory sealed: external seals not required; Receptacles are supplied with pressure terminal connectors; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Fiberglass re
Standard:
Class I, Division 1 And 2, Groups C, D; UL 1010 (UL 1203), UL 894; UL Listed: E10784
Stock Type:
Shelf Stock
Sub Brand:
Contender
Type:
CPS Series 1-Gang Receptacle
UNSPSC:
39121406
Voltage Rating:
125 - 250 VAC, 18 VDC
Warranty Link:
Weight:
1.910 L
Manufactured By:
Appleton Electric
