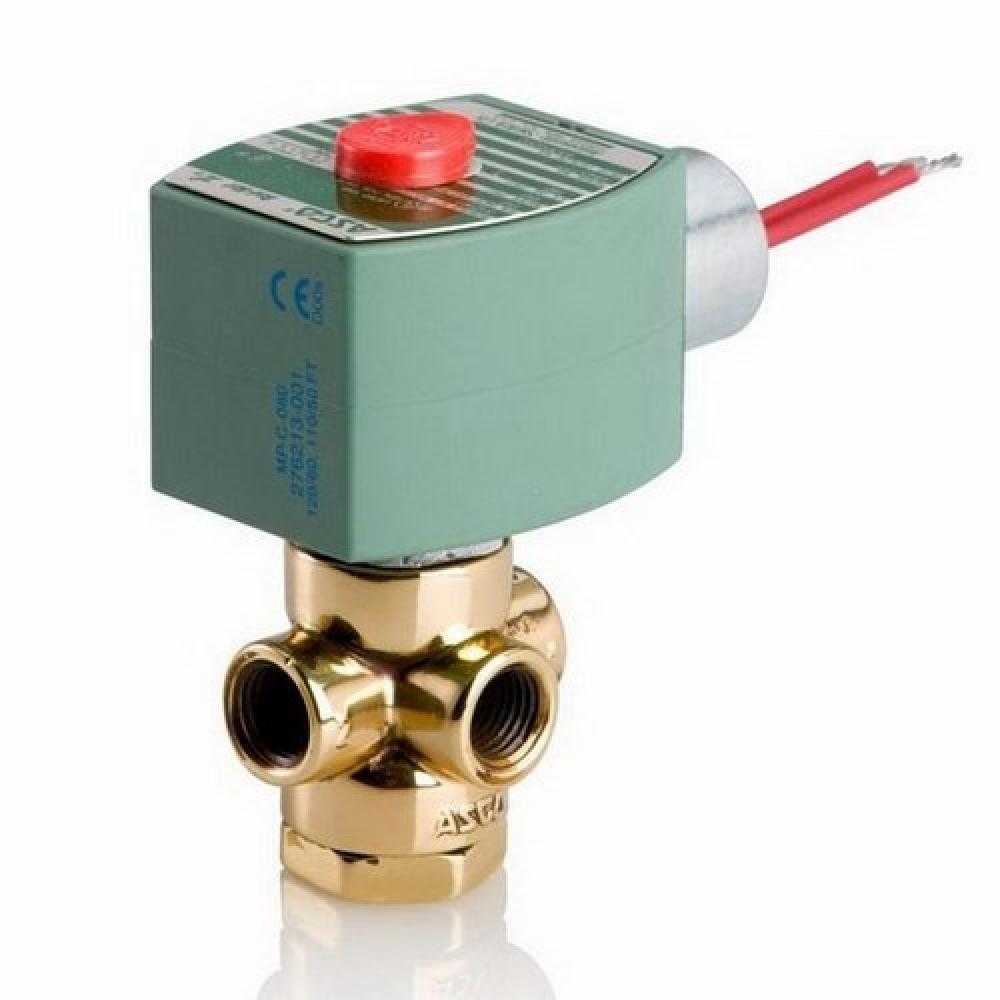

SOLENOID VALVE,10.1 WTT AT 60 HZ,1/16 IN by Asco Valve, div of Emerson

3/2 Series 8320 Direct Acting General Service Solenoid Valve, Voltage Rating: 120 VAC At 60 HZ, 110 VAC At 50 HZ, Wattage: 10.1 WTT At 60 HZ, Media: Air, Water, Light Oil, Port Size: 1/16 IN, Number Of Ports/Ways: 3-Way, Pressure Rating: 125 PSI (Air), 130 PSI (Water, Light Oil), Flow Rating: 0.09 CV, Insulation Class: F, Electrical Connections: 1/2 IN Conduit Hub With 18 IN Leads, Enclosure: Watertight, Types 1, 2, 3, 3S, 4, 4X Combinations, Body Material: Brass, Seats: NBR, Temperature Rating: 32 - 125 DEG F (Ambient), 200 DEG F (Fluid), Dimensions: 3-1/8 IN Length X 1.95 IN Width X 3.74 IN Height, Operation: Universal, Pipe Size: 1/4 IN NPT, UL Listed, CSA, CE Certified, For In-Line Piping
