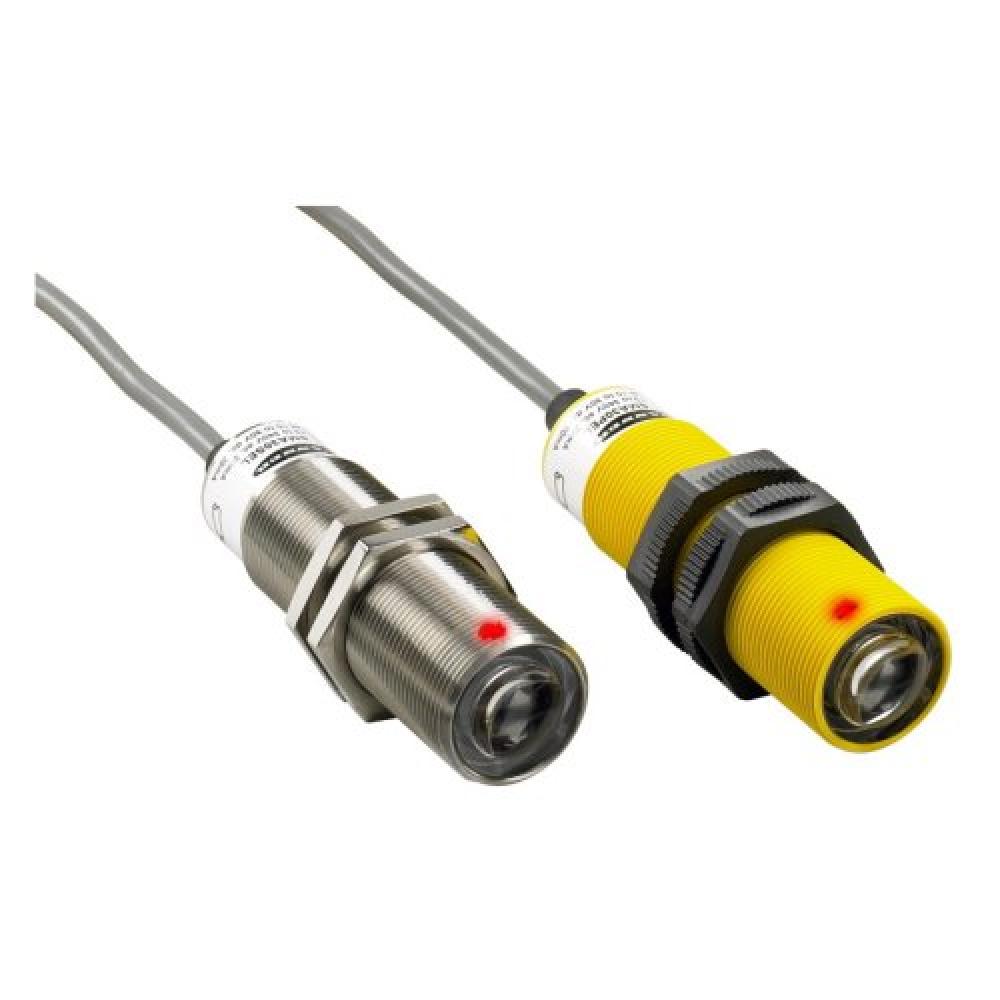

EZ-BEAM OPPOSED MODE RECEIVER by Banner Engineering
Call For Price
- Part Number: SM2A30SRLNCQD
- UPC: 00662488272968
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
EZ-BEAM Frequency A SM30 Series Opposed Mode Receiver,24 - 240 VAC,Sensing Range: 200 MR,880 NMTR Infrared LED Sensing Beam,Output: SPST Solid-State, Maximum Steady-State Load Capability: 500 MILAMP, Inrush Capability: 10 AMP for 1 S (Non-Repeating), On-S
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Size:
30 MM Diameter X 114.5 MM Length Barrel
Voltage Rating:
24 - 240
Application:
For Use With SMA30 Series Photoelectric Sensor Emitter
Brand Name:
Banner
Connection:
3-Pin Mini-Style Quick Disconnect
Country Of Origin:
USA
Enclosure:
IEC IP67 NEMA 6P 303 Stainless Steel
Environmental Conditions:
90 PCT At 50 DEG C Relative Humidity
Leakage Current:
Off-State Output: Less Than 1.7 MILAMP
Lens:
Acrylic
Operating Temperature:
-40 To 70
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
SPST Solid-State, Maximum Steady-State Load Capability: 500 MILAMP, Inrush Capability: 10 AMP for 1 S (Non-Repeating), On-State Voltage Drop: Less Than 3.5 V RMS Across a 500 MILAMP Load And Less Than 5 V RMS Across a 15 MILAMP Load
Response Time:
10
RoHS Compliance:
Contact Manufacturer
Sensing Beam:
880 NMTR Infrared LED
Sensing Range:
200
Special Features:
Barrel housing style; Positive sealing eliminates even capillary leakage, lens is quad-ring sealed, fully epoxy-encapsulated tubular threaded housing, ideal for equipment wash-down environments; EZ-BEAM technology provides reliable sensing without the ne
Stock Type:
Shelf Stock
Type:
Frequency A SM30 Series Opposed Mode Receiver
UNSPSC:
39121528
Manufactured By:
Banner Engineering
