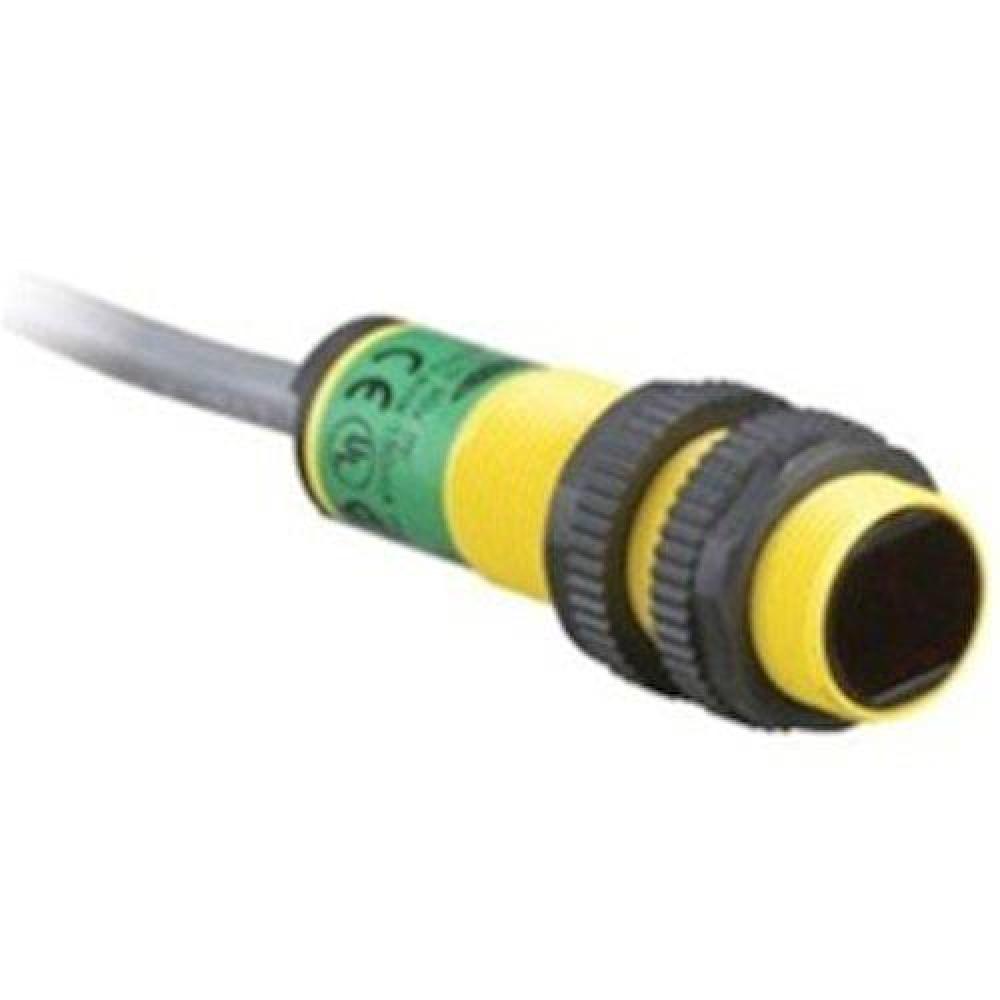

EZ-BEAM S18 SERIES PHOTOELECTRIC SENSOR by Banner Engineering
Call For Price
- Part Number: S18AW3FF100Q1
- UPC: 00662488336912
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
EZ-BEAM S18 Series Self-Contained Fixed Field Mode Photoelectric Sensor,20 - 250 VAC,Average: 20 MILAMP, Peak: 750 MILAMP,Sensing Range: 100 MM,880 NMTR Infrared LED Sensing Beam,Output: SPST 3-Wire Solid-State AC Switch, Derate 5 MILAMP/DEG C Above 50 DE
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Size:
16.6 MM Diameter X 104.1 MM Length Barrel
Voltage Rating:
20 - 250
Amperage Rating:
Average: 20 MILAMP, Peak: 750 MILAMP
Brand Name:
Banner
Connection:
4-Pin Micro-Style Quick Disconnect
Country Of Origin:
USA
Enclosure:
IP69K NEMA 6P Thermoplastic Polyester
Environmental Conditions:
90 PCT At 50 DEG C Relative Humidity
Leakage Current:
Off-State Output: Less Than 100 MICAMP
Lens:
Acrylic
Operating Temperature:
-40 To 70
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
SPST 3-Wire Solid-State AC Switch, Derate 5 MILAMP/DEG C Above 50 DEG C; Inrush Capability: 1 AMP For 20 MS (Non-Repetitive); ON-State Saturation Voltage: 3 V At 300 MILAMP AC And 2 V At 15 MILAMP AC
Response Time:
16
RoHS Compliance:
Contact Manufacturer
Sensing Beam:
880 NMTR Infrared LED
Sensing Range:
100
Special Features:
Protected against transient voltages; Output protection circuitry: Protected against false pulse on power-up
Stock Type:
Shelf Stock
Type:
S18 Series Self-Contained Fixed Field Mode Photoelectric Sensor
UNSPSC:
39121528
Vibration:
10 - 60 HZ Maximum, Double Amplitude 0.06 IN, Maximum Acceleration 10G
Manufactured By:
Banner Engineering
