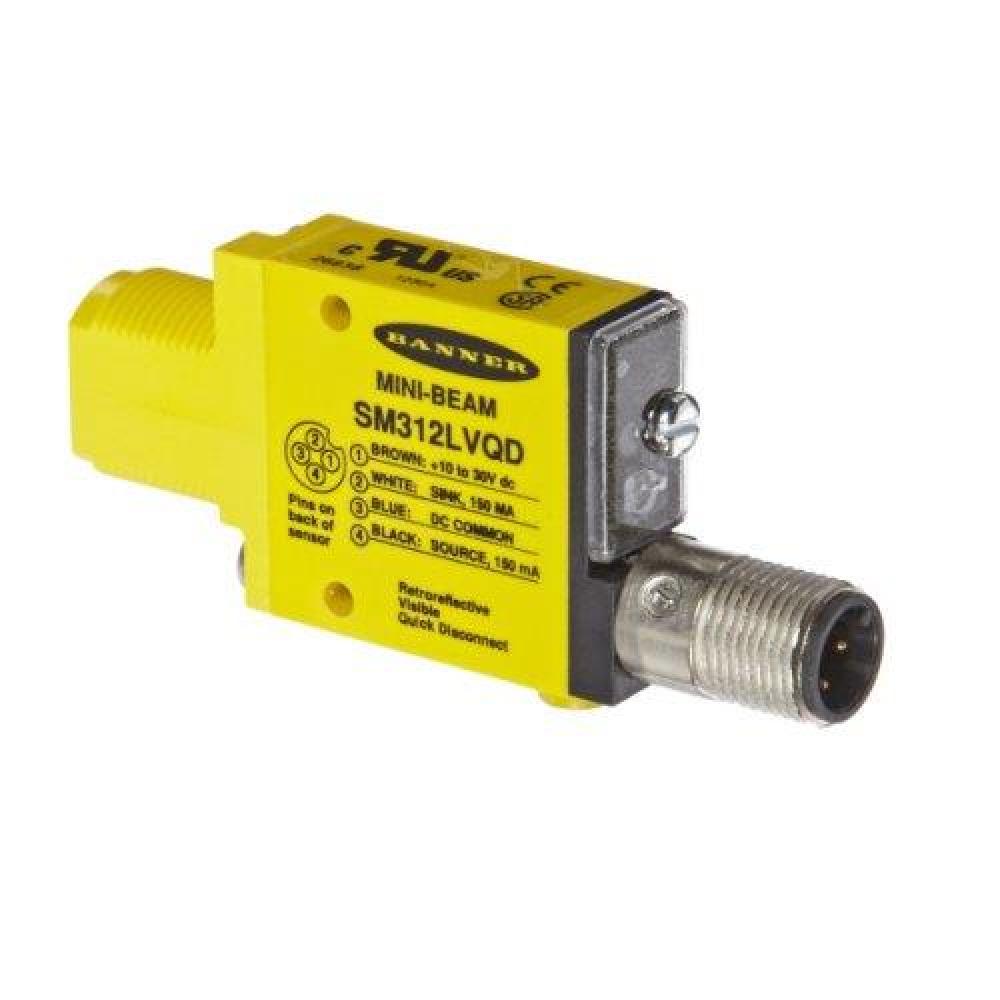

MINI-BEAM PHOTOELECTRIC SENSOR by Banner Engineering
Call For Price
- Part Number: SM312LVQD
- UPC: 00662488268381
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
MINI-BEAM Self-Contained Non-Polarized Retroreflective Mode Photoelectric Sensor,10 - 30 VDC,Less Than 25 MILAMP,Sensing Range: 5 MR,650 NMTR Visible Red LED Sensing Beam,Output: Bipolar (NPN And PNP), 150 MILAMP Maximum at 25 DEG C Derated To 100 MILAMP
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Size:
12.2 MM Length X 53.3 MM Width X 30.7 MM Height X 18 MM Barrel Diameter
Voltage Rating:
10 - 30
Amperage Rating:
Less Than 25 MILAMP
Brand Name:
Banner
Connection:
4-Pin Integral Euro-Style Quick Disconnect
Country Of Origin:
USA
Enclosure:
IEC IP67 NEMA 1, 2, 3, 3S, 4, 4X, 6, 12 and 13 Reinforced Thermoplastic Polyester
Environmental Conditions:
90 PCT At 50 DEG C Relative Humidity
Leakage Current:
Off-State Output: Less Than 1 MICAMP
Lens:
Acrylic
Operating Temperature:
-20 To 70
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
Bipolar (NPN And PNP), 150 MILAMP Maximum at 25 DEG C Derated To 100 MILAMP At 70 DEG C; Output Saturation Voltage: PNP - Less Than 1 V At 10 MILAMP And Less Than 2 V at 150 MILAMP, NPN - Less Than 200 MILV At 10 MILAMP And Less Than 1 V at 150 MILAMP
Response Time:
1
RoHS Compliance:
Contact Manufacturer
Sensing Beam:
650 NMTR Visible Red LED
Sensing Range:
5
Special Features:
Compact, modulated, highly repeatable sensors; Switch-selectable for light operate or dark operate; Includes banner’s exclusive AID™ alignment system; Rugged, epoxy-encapsulated, totally encapsulated, o-ring sealing, and stainless steel screws const
Stock Type:
Shelf Stock
Type:
Self-Contained Non-Polarized Retroreflective Mode Photoelectric Sensor
UNSPSC:
39121528
Manufactured By:
Banner Engineering
