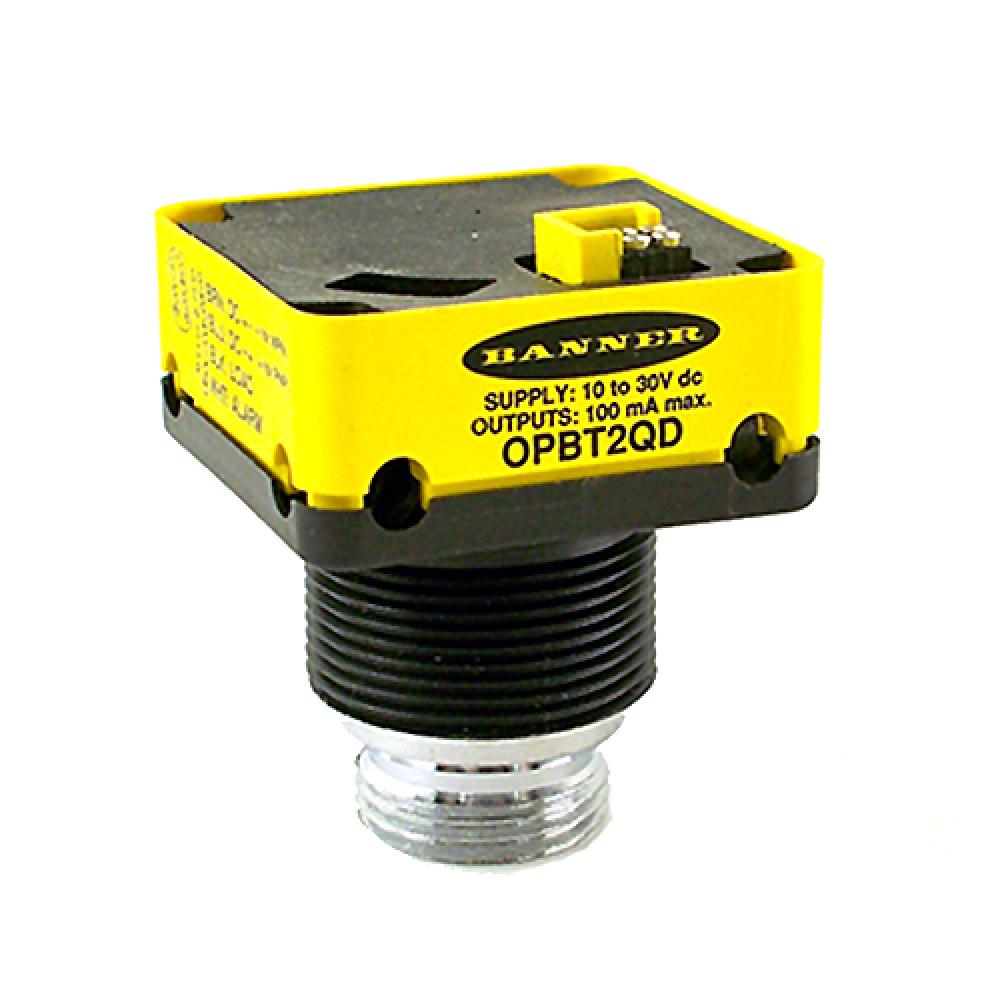

OMNI-BEAM DC POWER BLOCK,STD,10 - 30 VDC by Banner Engineering
Call For Price
- Part Number: OPBT2QD
- UPC: 00662488270957
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Omni-Beam DC Power Block, Standard, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than 80 MILAMP (Exclusive Of Loads), Output: Bi-Modal (1 NPN, 1 PNP), 100 MILAMP Maximum Continuous, Off-state Leakage Current: Less Than 100 MICAMP, On-state Voltage Drop: (NPN And PNP Output) Less Than 1 V At 10 MILAMP Load And Less Than 1.5 V At 100 MILAMP Load, Connection: Integral Standard 4-Pin Mini-Style Quick Disconnect, C/US RU Listed, CE Certified, For Use With Omni-Beam Sensors
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Voltage Rating:
10 - 30
Amperage Rating:
Less Than 80 MILAMP (Exclusive Of Loads)
Application:
For Use With Omni-Beam Sensors
Brand Name:
Banner
Connection:
Integral Standard 4-Pin Mini-Style Quick Disconnect
Country Of Origin:
USA
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
Bi-Modal (1 NPN, 1 PNP), 100 MILAMP Maximum Continuous, Off-state Leakage Current: Less Than 100 MICAMP, On-state Voltage Drop: (NPN And PNP Output) Less Than 1 V At 10 MILAMP Load And Less Than 1.5 V At 100 MILAMP Load
RoHS Compliance:
No
Special Features:
Standard Omni-Beam DC power blocks provide regulated low voltage DC power to the sensor head and logic module (if one is used), with input of 10 to 30 VDC; There are two infinite-life outputs, one for the load and the other for the alarm of the D.A.T.A. se
Stock Type:
Shelf Stock
Sub Brand:
Omni-Beam
Type:
Standard DC Power Block
UNSPSC:
39121528
Manufactured By:
Banner Engineering
