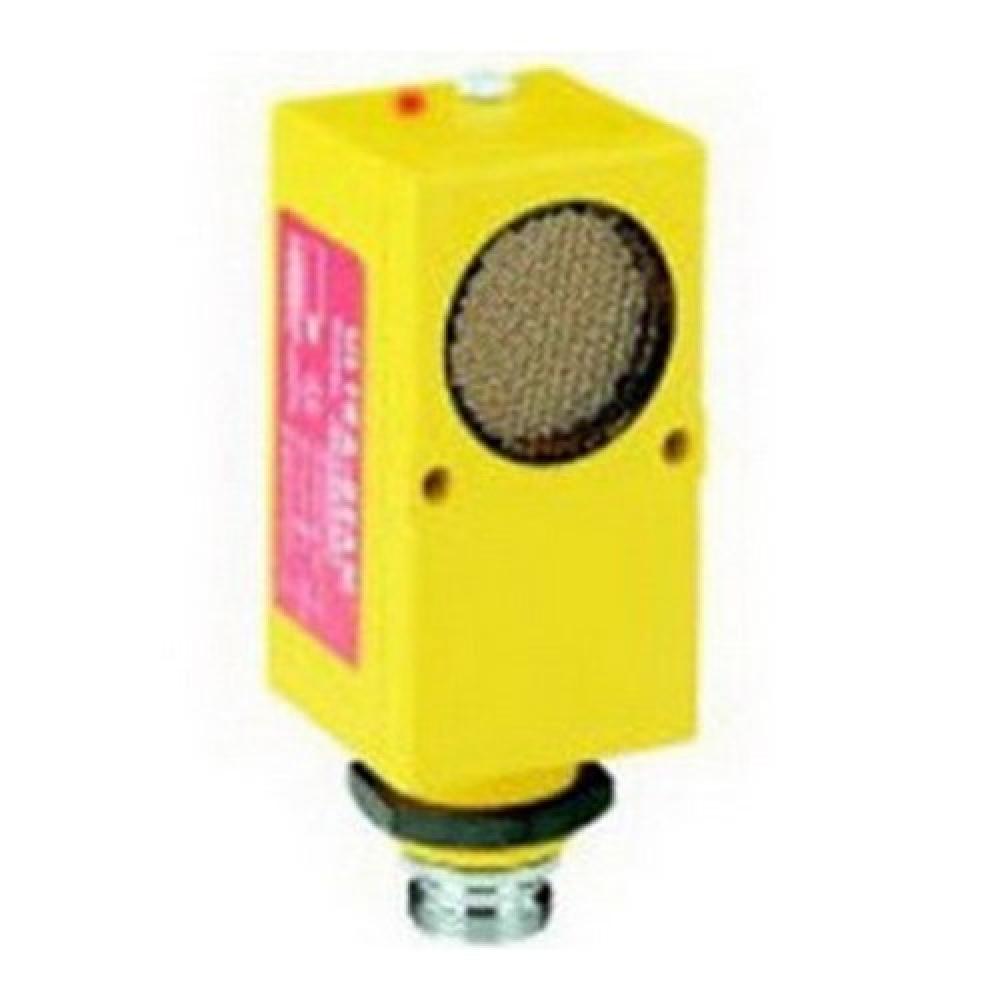

ULTRASONIC SENSOR,PROXIMITY MODE,925 by Banner Engineering
Call For Price
- Part Number: SU925QD-24
- UPC: 00662488270247
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Ultra-Beam Proximity Mode Ultrasonic Sensor, Model: 925, Measuring Range: 20 IN - 2 FT, Output: Capacity: 150 WTT Or 600 VA Maximum Power (Resistive Load), Maximum Voltage: 250 VAC Or 30 VDC (Resistive Load), Maximum Current: 5 AMP (Resistive Load), Minimum Load: 5 VDC At 100 MILAMP, Connection: 5-Pin Integral Quick Disconnect, Sensing Distance: 500 - 6000 MM, Voltage Rating: 18 - 30 VDC, Temperature Rating: 0 - 50 DEG C, Response Time: 100 MS, Size: 120.1 MM Height X 50 MM Width X 48.8 MM Depth, Enclosure: NEMA 1, 3, 12, Epoxy-Encapsulated Circuitry, Rugged, Glass Filled Valox Housing, Indicator: Red LED Indicator On Top Of Sensor Lights When Object Is Sensed (When Output Relay Is Energized), Adjustments: 15-Turn Clutched Potentiometer With Slotted Brass Element, Located Under O-Ring Gasketed Access Screw On Top Of Sensor, Hysteresis: 5 PCT Of Range Setting, CE Certified, For Bin-Level Sensing/Control And Presence Sensing Of Transparent Materials
Specifications
Details
Electrical Category:
Testing And Measuring
Electrical Subcategory:
Sensors
Electrical Subtype:
Ultrasonic Sensor
Size:
120.1 MM Height X 50 MM Width X 48.8 MM Depth
Voltage Rating:
18 - 30
Application:
For Bin-Level Sensing/Control And Presence Sensing Of Transparent Materials
Brand Name:
Banner
Connection:
5-Pin Integral Quick Disconnect
Country Of Origin:
UKN
Enclosure:
NEMA 1, 3, 12, Epoxy-Encapsulated Circuitry, Rugged, Glass Filled Valox Housing
Measuring Range:
20 IN - 2 FT
Model:
925
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
Capacity: 150 WTT Or 600 VA Maximum Power (Resistive Load), Maximum Voltage: 250 VAC Or 30 VDC (Resistive Load), Maximum Current: 5 AMP (Resistive Load), Minimum Load: 5 VDC At 100 MILAMP
Response Time:
100
RoHS Compliance:
No
Sensing Distance:
500 - 6000
Special Features:
Interfaces easily to variable-speed dc drives, microprocessors and PLCs; Ideal for bin-level sensing/control and sensing transparent materials; The Ultra-Beam is ruggedly constructed with epoxy-encapsulated circuitry and housed in a tough, corrosion-proof
Stock Type:
Shelf Stock
Sub Brand:
Ultra-Beam
Temperature Rating:
0 - 50
Type:
Proximity Mode Ultrasonic Sensor
UNSPSC:
41111960
Manufactured By:
Banner Engineering
