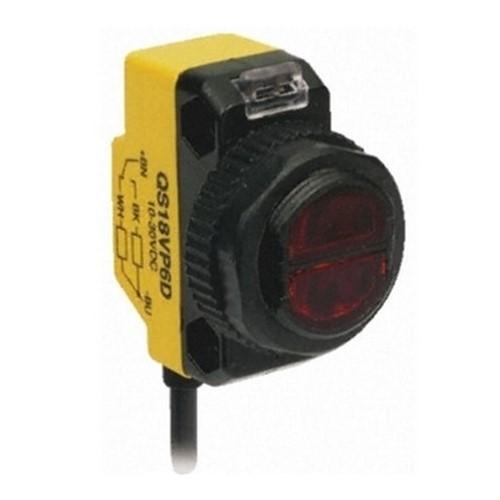

PHOTOELECTRIC SENSOR,10 - 30 VDC,300 MM

PHOTOELECTRIC SENSOR,10 - 30 VDC,300 MM by Banner

Call For Price
  • Part Number: QS18VP6LDQ5
  • UPC: 00662488730437
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
World-Beam QS18 Series Miniature Self-Contained Proximity Diffuse Mode Photoelectric Sensor, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than 25 MILAMP, Sensing Range: 300 MM, Sensing Beam: 940 NMTR Infrared LED, Output: Complementary Solid State PNP, Lens: Acrylic, Enclosure: IEC IP67, NEMA 6, UL Type 1, Rectangular Thermoplastic, Response Time: 0.7 MS, Leakage Current: Off-State Output: Less Than 50 MICAMP At 30 VDC, Connection: 150 MM Pigtail With 4-Pin Euro-Style Quick Disconnect, Size: 34-1/2 MM Height x 31.1 MM Width x 15 MM Depth, Mounting: Universal, Operating Temperature: -20 to 70 DEG C, Environmental Conditions: Relative Humidity: 95 PCT At 50 DEG C (Non-Condensing), Operation: Light/Dark, Delay At Power-Up: 100 MS, Repeatability: 150 MICSEC, Output Rating: 100 MILAMP Maximum Each Output At 25 DEG C, On-State Saturation Voltage: Less Than 1 V At 10 MILAMP And Less Than 1.5 V At 100 MILAMP, Barrel Diameter: 18 MM, CE Certified, C/US RU Listed, For Detecting Baggage Along A Conveyor To Ensure Efficient, Optimized Baggage Handling Processes
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Size:
34-1/2 MM Height x 31.1 MM Width x 15 MM Depth
Voltage Rating:
10 - 30
Category:
Photoelectric sensors
Length:
6
Ship Weight:
0.5
Amperage Rating:
Less Than 25 MILAMP
Application:
For Detecting Baggage Along A Conveyor To Ensure Efficient, Optimized Baggage Handling Processes
Connection:
150 MM Pigtail With 4-Pin Euro-Style Quick Disconnect
Enclosure:
IEC IP67, NEMA 6, UL Type 1, Rectangular Thermoplastic
Environmental Conditions:
Relative Humidity: 95 PCT At 50 DEG C (Non-Condensing)
Leakage Current:
Off-State Output: Less Than 50 MICAMP At 30 VDC
Lens:
Acrylic
Mounting:
Universal
Operating Temperature:
-20 To 70
Output:
Complementary Solid State PNP
Response Time:
0.7
Sensing Beam:
940 NMTR Infrared LED
Sensing Range:
300
Spec Sheet:
Sub Brand:
World-Beam
Type:
QS18 Series Miniature Self-Contained Proximity Diffuse Mode Photoelectric Sensor
UNSPSC:
39121528
39122221
Manufactured By:
Banner
