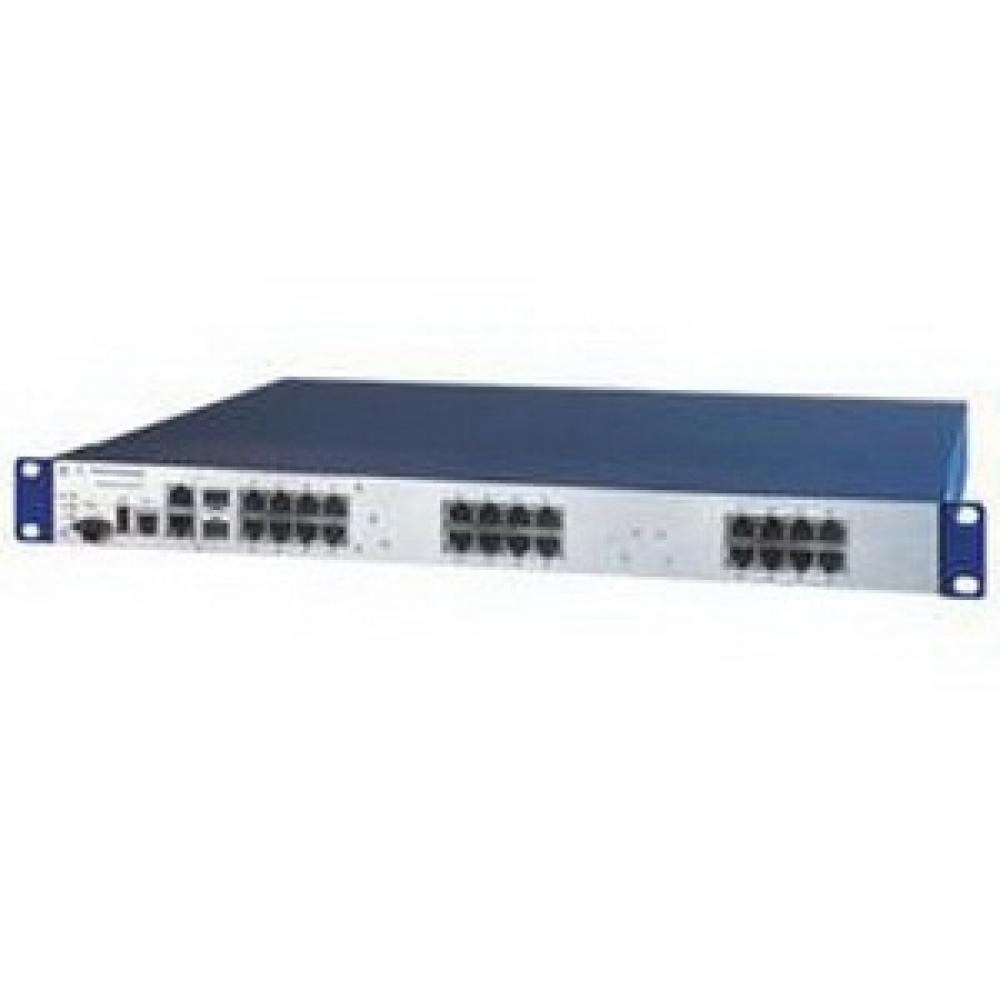

GIGABIT ETHERNET SWITCH,ENET,IP20,448 MM by Belden
Call For Price
- Part Number: 943 969-401
- UPC: 00020442426404
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Hirschmann Fast/Gigabit Ethernet Switch, Interface: V.24: 1 x RJ11 Socket, Serial Interface For Device Configuration, USB: 1 x To Connect Auto-Configuration Adapter ACA21-USB, Port: 26, (24) 10/100 BASE-TX, RJ45, (2) Gigabit Combo ports, Protocol: Ethernet, Cable: 0 - 100 MR Twisted Pair, Enclosure: IP20, Mounting: 19 IN Control Cabinet, Length: 448 MM, Width: 310 MM, Height: 44 MM, Operating Temperature: 0 - 50 DEG C, Environmental Conditions: Storage/Transport: -20 to 85 DEG C, Relative Humidity (Non-Condensing): 10 - 95 PCT, Voltage: 100 - 240 VAC At 47 - 63 HZ, Amperage: 0.4 - 0.2 AMP, Power: 55 BTU (IT)/HR, Consumption: 16 WTT, UL 508, 60950-1 Listed
Specifications
Details
Electronics Category:
Networking /vendors/vendorImages
Electrical Category:
Control And Automation
Data Networking And Wireless
Electrical Subcategory:
Switches
Network Service Equipment
Electrical Subtype:
Network Switches
Network Switch
Height:
44 mm
Length:
448 mm
Width:
310 mm
Brand Name:
Belden
Cable:
0 - 100 MR Twisted Pair
Country Of Origin:
UKN
Enclosure:
IP20
Environmental Conditions:
Storage/Transport: -20 to 85 DEG C, Relative Humidity (Non-Condensing): 10 - 95 PCT
Interface:
V.24: 1 x RJ11 Socket, Serial Interface For Device Configuration, USB: 1 x To Connect Auto-Configuration Adapter ACA21-USB
Mounting:
19 IN Control Cabinet
Operating Temperature:
0 - 50
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Port:
26, (24) 10/100 BASE-TX, RJ45, (2) Gigabit Combo ports
Protocol:
Ethernet
RoHS Compliance:
Contact Manufacturer
Special Features:
Managed, software layer 2 professional, store and forward switching, fanless Design; 1 X plug-in terminal block, 2-pin, output manual or automatic switchable (maximum 1 AMP, 24 VDC bzw. 24 VAC) power supply/signaling contact; Line/star topology; Ring struc
Sub Brand:
HIRSCHMANN
Type:
Fast/Gigabit Ethernet Switch
UNSPSC:
43222612
Manufactured By:
Belden
