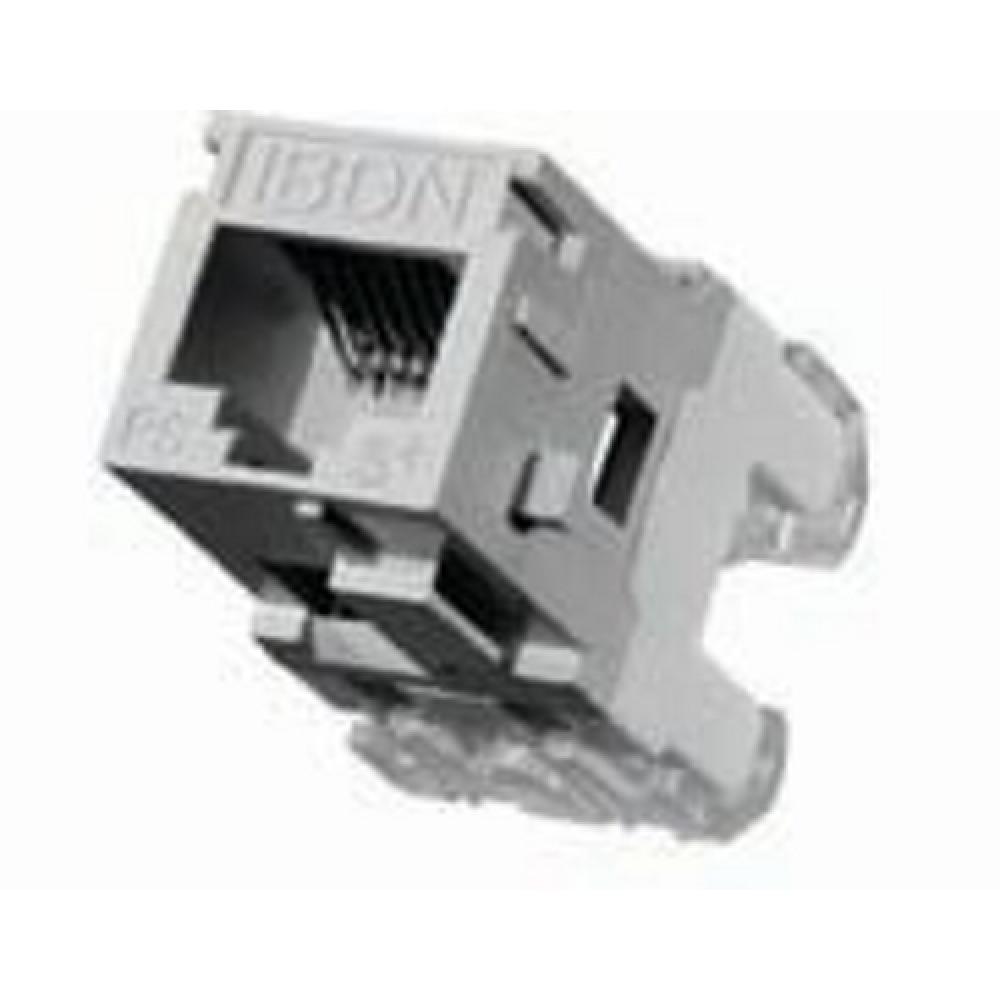

RJ45 MODULAR JACK,FLEX MDVO,6-POSITION by Belden
Call For Price
- Part Number: AX101035
- UPC: 00789299060178
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Belden AX101035 RJ45 Modular Jack, Flex MDVO, 6-Position, Mated (RJ45/RJ11) Front X Gas Tight IDC Rear Connection, Contact: Copper Alloy With 50 UIN Gold Over Nickel Front Connection, Copper Alloy With Nickel Plating Rear Connection, White, Plastic, -10 To 60 DEG C, Storage Temperature: -40 To 70 DEG C, 0.77 IN Width X 1.35 IN Depth X 0.85 IN Height, 1.5 AMP, 2.5 MILOHM Termination Resistance, Retention: Connector/Hardware: 20 LB, Plug/Connector: 11.25 LB, Durability: Front Connection: 1000 Cycles, Rear Connection: 10 Insertions, Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination Station, UL940V-0, USOC, FCC Part 68, Subpart F, IEC 60603-7; EU Directive 2002/95/EC (RoHS): Yes, MII Order #39 (China RoHS): EUP 50, Safety Listing: ACA, Bi-national Standard Listed, For Voice Applications, Category 3 And Compatible With Interface And MDVO Style Faceplates, Adapters, Boxes And Patch Panels
Specifications
Details
Electronics Category:
Networking /vendors/vendorImages
Electronics Subcategories:
Network Cables and Connectors /vendors/vendorImages
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Electrical Subtype:
RJ Jack And Module
Color:
White
Application:
For Voice Applications, Category 3 And Compatible With Interface And MDVO Style Faceplates, Adapters, Boxes And Patch Panels
Brand Name:
Belden
Connection:
Mated (RJ45/RJ11) Front X Gas Tight IDC Rear
Contact:
Copper Alloy With 50 UIN Gold Over Nickel Front Connection, Copper Alloy With Nickel Plating Rear Connection
Country Of Origin:
UKN
Enclosure:
Plastic
Environmental Conditions:
Storage Temperature: -40 To 70 DEG C
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
Contact Manufacturer
Special Features:
The Flex Module USOC-coded is a punch down UTP connector that has a narrower plug entrance and a USOC 6-pin color code in the back; These modules are used for voice applications and are designed to prevent connecting the computer into the analog phone jack
Temperature Rating:
-10 To 60
Type:
6-Position Flex MDVO RJ45 Modular Jack
UNSPSC:
39121444
Manufactured By:
Belden
