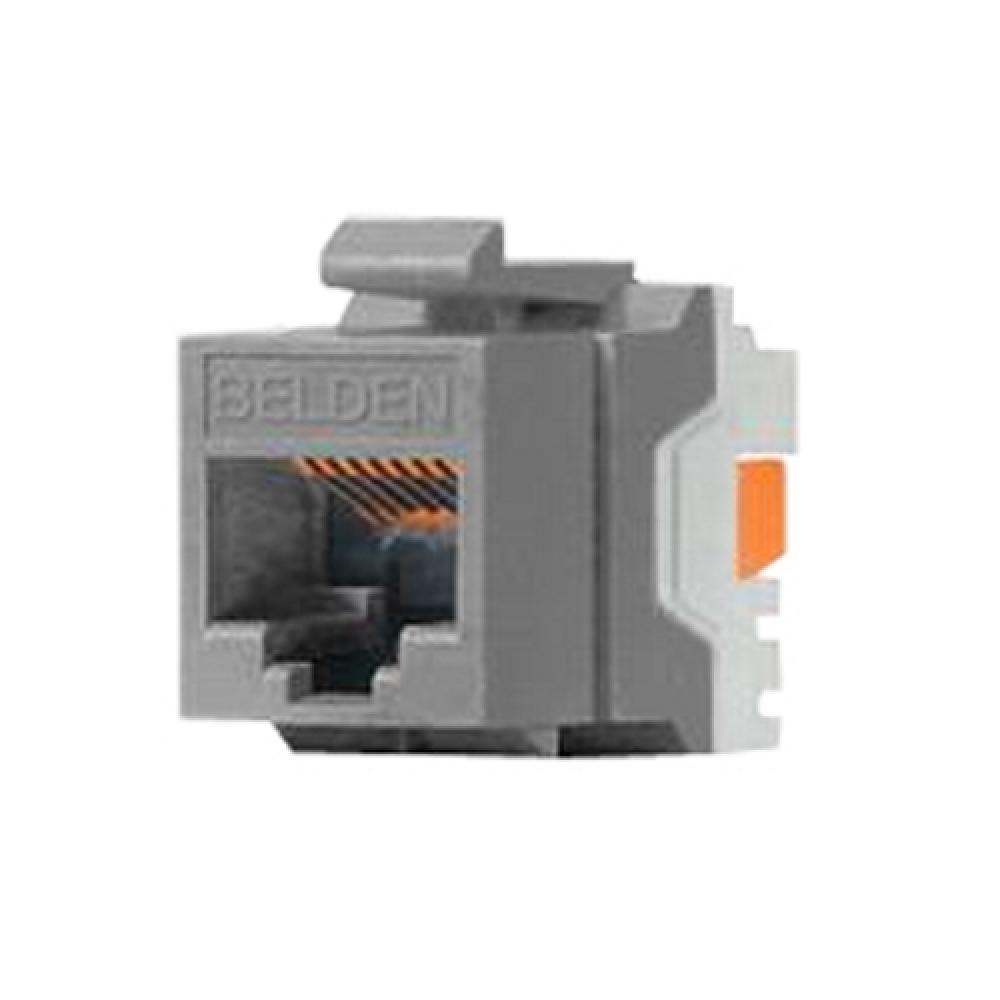

RJ45 MODULAR JACK,KEYCONNECT,GRAY by Belden

Belden AX101318 RJ45 Modular Jack, KeyConnect, Mated (RJ45/RJ11) Front X Gas Tight IDC Rear Connection, Contact: Copper Alloy With 50 UIN Gold Over Nickel Front Connection, Copper Alloy With Nickel Plating Rear Connection, Insertion Loss: 0.31 DB At 300 MHZ, 20 MILOHM Contact Resistance, Insulation: 500 MOHM Minimum Resistance, Withstand Voltage: 1000 V RMS At 60 HZ For 1 MINT, Gray, Plastic, -10 To 60 DEG C, Storage Temperature: -40 To 70 DEG C, 0.64 IN Width X 1.29 IN Depth X 0.88 IN Height, 18.5 DB At 300 MHZ Return Loss, 1.5 AMP, 2.5 MILOHM Termination Resistance, Retention: Connector/Hardware: 20 LB, Plug/Connector: 11.25 LB, Durability: Front Connection: 1000 Cycles, Rear Connection: 20 Insertions, Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination Station, UL940V-0, FCC Part 68, Subpart F, IEC 60603-7, EU Directive 2002/95/EC (RoHS): Yes, MII Order #39 (China RoHS): EUP 50, Category 6 - TIA 568.B.2-1, ISO/IEC 11801:2002 Ed.2; ETL - Verified Category 6, Safety Listing: ACA, Bi-national Standard Listed, For Use With IBDN System 2400 And 4800, TIA Category 6+, ISO Class E, 1000 BASE-T And Compatible With KeyConnect Faceplates, Adapters, Boxes And Patch Panels
