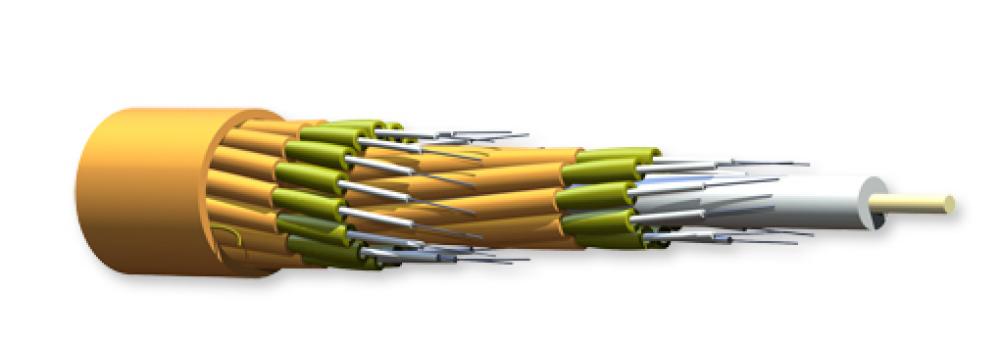

Fan-Out Tight-Buffered Cable, Riser, 24 F, 2.9 m by Corning
Call For Price
- Part Number: 024T61-31131-24
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Corning fan-out plenum cables are designed for use in building backbone and horizontal cabling. These multifiber cables use individually jacketed 900 µm TBII Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are stranded around a dielectric central member with a flame-retardant outer jacket, making this cable particularly useful for applications requiring direct connection to terminal equipment or requiring extra rugged cables. This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Electrical Cable
Electrical Subtype:
Fiber Optic Cable
Color:
Orange
Application:
General Purpose Horizontal, Vertical Riser
Attenuation:
2,8 dB/km / 1,0 dB/km
Bandwidth:
700 MHz*km / 500 MHz*km
Bend Radius:
193 mm (7,6 in)
Brand Name:
Corning
Construction:
Fan-Out Tight-Buffered Cable
Country Of Origin:
USA
Fiber Size:
50/125/250
Fiber Type:
50 µm MM (OM2)
Installation Link:
Jacket Material:
Flame-retardant
Number Of Fibers:
24
Order Minimum:
2000.000 FT
Order Multiple:
1.000 FT
Outside Diameter:
19,3 mm (0,8 in)
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
Distribution
Stock Type:
Shelf Stock
Tech Bulletin Link:
Temperature Rating:
-20 °C to 70 °C (-4 °F to 158 °F)
Tensile Strength:
1320 N (300 lbf)
Type:
Indoor
UNSPSC:
26121607
Wavelength:
850 nm / 1300 nm
Weight:
288 kg/km (193 lb/1000 ft)
Manufactured By:
Corning
