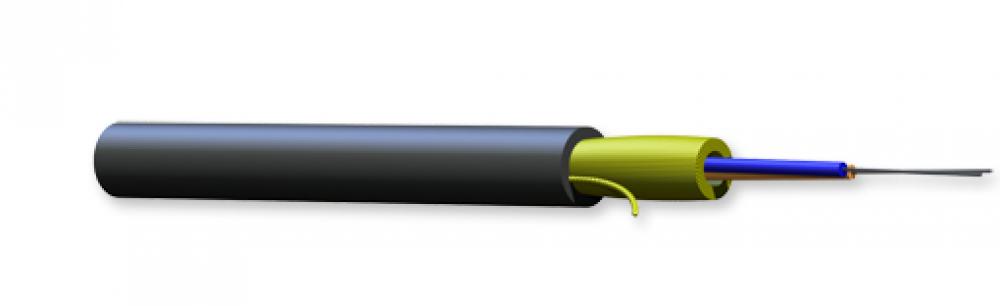

FREEDM® One Tight-Buffered Cable, Pl by Corning
Call For Price
- Part Number: 002K8P-31130-29
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Corning FREEDM® One plenum cables are flame-retardant, UV-resistant, indoor/outdoor cables designed for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. The tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates the need for fan-out kits. The design features TIA-598 color-coded 900 µm TBII® buffered fibers for easy identification, consistent stripping and direct termination. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative waterblocking technology is ideal for outside plant (OSP) applications. The all-dielectric cable construction requires no grounding or bonding, and the UV-resistant, flame-retardant jacket is rugged, durable and easy to strip. Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Electrical Cable
Electrical Subtype:
Fiber Optic Cable
Color:
Black
Application:
Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser, Plenum
Attenuation:
3,4 dB/km / 1,0 dB/km
Bandwidth:
200 MHz*km / 500 MHz*km
Bend Radius:
25 mm (1,0 in)
Brand Name:
Corning
Brochure:
Construction:
Tight-Buffered Cable, Plenum
Country Of Origin:
USA
Fiber Size:
62.5/125/250
Fiber Type:
62.5 µm MM (OM1)
Installation Link:
Jacket Material:
Flame-Retardant, UV-Resistant
Number Of Fibers:
2
Order Minimum:
4500.000 FT
Order Multiple:
1.000 FT
Outside Diameter:
5,0 mm (0,20 in)
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
Dielectric
Standard:
ICEA S-104-696
Stock Type:
Shelf Stock
Sub Brand:
FREEDM® One
Tech Bulletin Link:
Temperature Rating:
-40 °C to 70 °C (-40 °F to 158 °F)
Tensile Strength:
675 N (150 lbf)
Type:
Indoor/Outdoor Cables
UNSPSC:
26121607
Wavelength:
850 nm / 1300 nm
Weight:
22 kg/km (15 lb/1000 ft)
Manufactured By:
Corning
