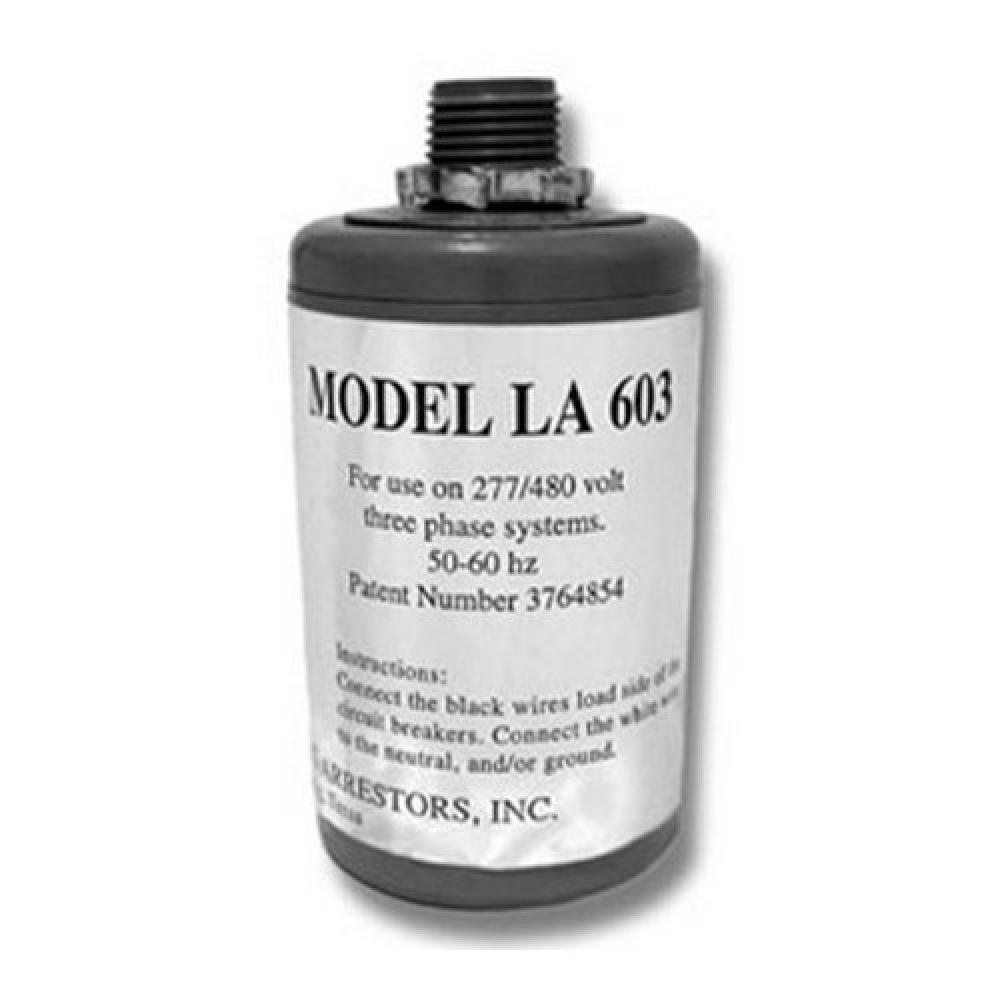

SURGE ARRESTOR,600 SERIES,INDL,50/60 HZ by Delta Lightning Arrestors
Call For Price
- Part Number: LA603
- UPC: 00782381603000
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
Delta Lightning Arrestor Surge Arrestor, 600 Series, Industrial, 240 - 480 - 600 V, 50/60 HZ, Phase: 3 PH, Short Circuit Rating: 100000 AMP, Response Time: 5 NS At 1 MILAMP, 10 NS At 10000 AMP, 25 NS At 50000 AMP, Material: PVC Case, 2-1/4 IN Diameter X 4-1/2 IN Height, Leads: 36 IN #12 THHN, Clamping Voltage: 5000 V At 100000 AMP (Line To Neutral), Maximum Energy: 3000 J/Pole, For 440 - 600 V Three Phase 4 Wire Service
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Circuit Protection Devices And Accessories
Electrical Subtype:
Surge Arrestor
Material:
PVC Case
Voltage Rating:
240 - 480 - 600
Application:
For 440 - 600 V Three Phase 4 Wire Service
Brand Name:
Delta Lightning Arrestors
Country Of Origin:
USA
Frequency Rating:
50/60
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
Response Time:
5 NS At 1 MILAMP, 10 NS At 10000 AMP, 25 NS At 50000 AMP
RoHS Compliance:
Contact Manufacturer
Short Circuit Rating:
100000
Special Features:
Rapid response; High current delta arrestors for industrial use help prevent voltage surge and lightning damage to motors and control equipment; Used when three hot wires of a three phase system are to be protected; One time operation; No leak current at d
Type:
600 Series Industrial Surge Arrestor
UNSPSC:
39121634
Manufactured By:
Delta Lightning Arrestors
