CUTOUT, COMB 15KV 110BIL 100A by Hubbell Power Systems
$
310
32
/ EA
/ 1 EA
- Part Number: C71DL112PB
- UPC: 00096359028635
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (28)
Product Overview

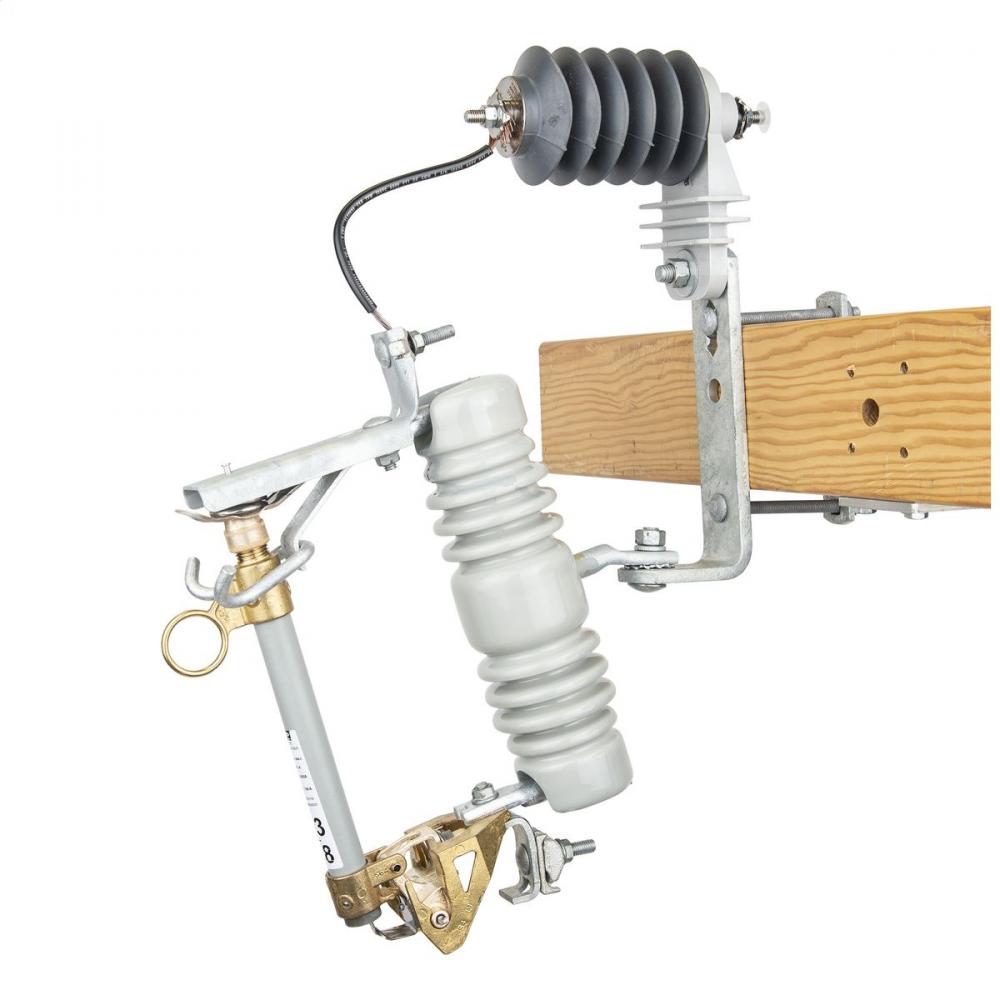

15 kV, 110 kV BIL, Standard Type C Porcelain Cutout / ArresterCombination with a 100A, 10kAIC fuseholder, parallel-groove connector and a NEMA B crossarm bracket.
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
100
Application:
Distribution
Brand Name:
CHANCE
Class:
10
Connection:
Parallel-groove clamp (#6 solid thru 4/0 ACSR (250kcmil))
Country Of Origin:
MX
Fuse Type:
NEMA B
Line Drawing Link:
Material:
Porcelain
Mounting:
NEMA "B" Heavy Duty for crossarm
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
Size:
32.500 in x 21.250 in x 5.500 in
Spec Sheet:
Standard:
All Applicable ANSI/IEEE Standards
Sub Brand:
Chance
Type:
Cutout
UNSPSC:
39121638
Voltage Rating:
15
Wattage:
50/60
Weight:
28.330 L
Manufactured By:
Hubbell Power Systems
