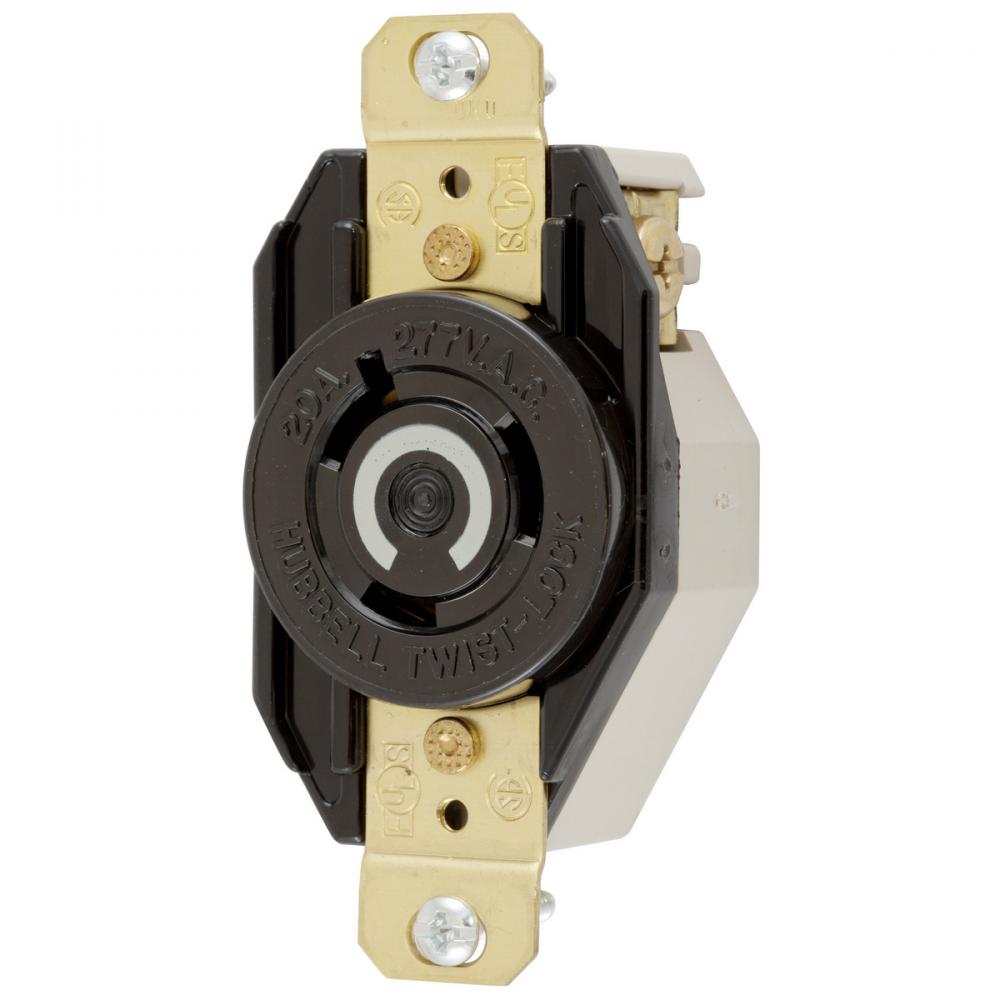

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20R, Screw Terminal, Nylon face, Back and side wire, Black.

Specifications

Details

Electrical Category:

Electrical Distribution Equipment

Lugs Plugs And Connectors

Electrical Subcategory:

Receptacles

Receptacle

Amperage Rating:

Application:

Heavy Duty Industrial

Brand Name:

WIRING DEVICE-KELLEMS

Color:

Black

Connection:

Screw Terminal

Country Of Origin:

Dielectric Strength:

Withstands 2,000V minimum

Environmental Conditions:

Indoor Dry Unless Protected By Additional Means

Installation Link:

Installation Instructions

Line Drawing Link:

Line Drawing

Material:

Nylon

Mounting:

Screw Mount

NEMA Rating:

L7-20R

Number Of Poles:

2-Pole

Number Of Wires:

3-Wire

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

Phase:

Single Phase

Size:

3.28 in x 1.70 in x 1.23 in

Spec Sheet:

Spec Link

Special Features:

Standard

Standard:

Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498

Sub Brand:

Twist-Lock Devices

Tech Drawing Link:

Tech Drawing

Type:

Single Flush Receptacle

UNSPSC:

39121406

Voltage Rating:

277

Warranty Link:

Warranty Information

Wattage:

5,540

Weight:

.084 L

Wire Size:

#16 AWG to #8 AWG

Manufactured By:

Hubbell Wiring Device-Kellems
