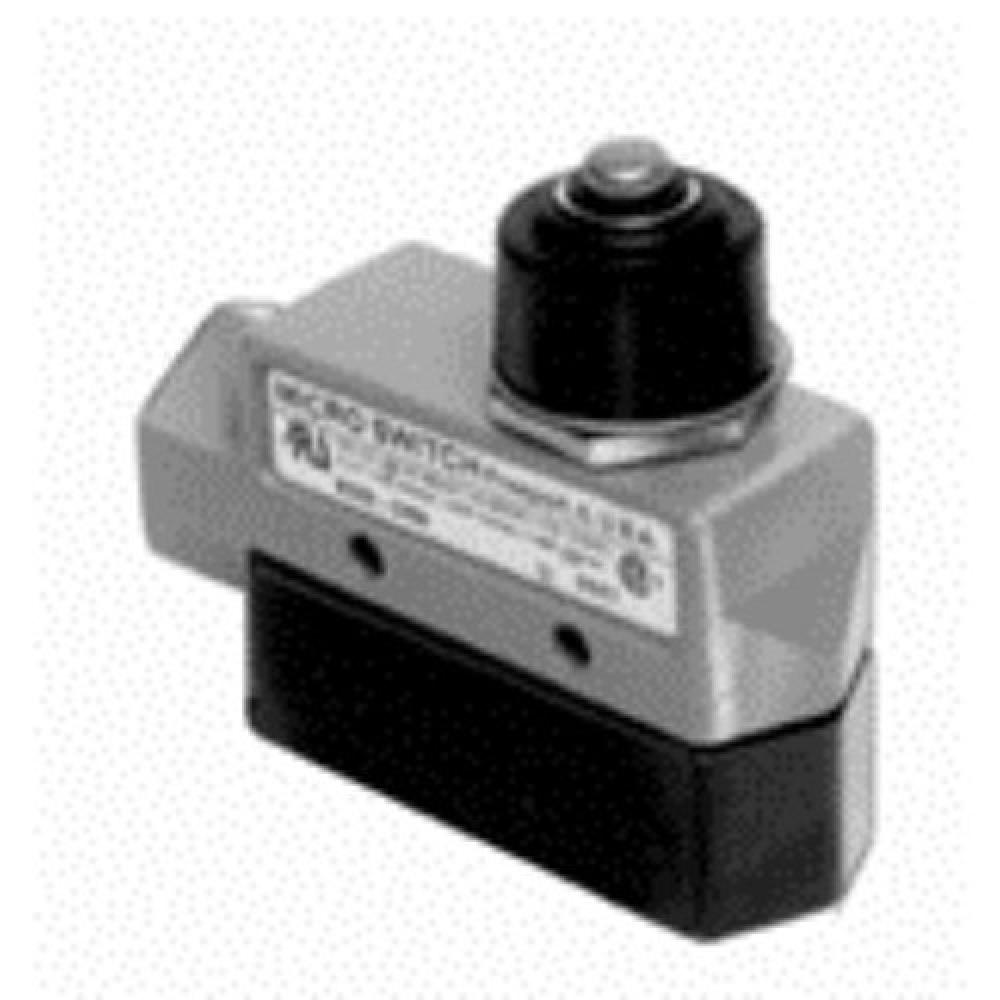

Micro Limit Switch by IDEA Honeywell
Call For Price
- Part Number: DTE6-2RN
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Honeywell DTE6-2RN Micro Limit Switch, E6 Series, Medium Duty, Enclosed, 125/250 VAC, 125/250 VDC, Amperage Rating: 10 AMP Inductive, 0.3/0.15 AMP Resistive, Number Of Poles: 2 Poles, DPDT Snap Action, Connection: 1/2-14 NPT Conduit, Top Plunger With Boot Seal Actuator, Contact Configuration: 2 NC/2 NO, 3.04 IN Length X 1 IN Width X 2.922 IN Height, Enclosure: IP66, NEMA 1, 3, 4 Split Zinc Die-Cast, Mounting: Side Mount, -32 To 71 DEG C, Force: 6.95 - 16.4 N Operating, 1.67 N Minimum Release, Travel: 2.8 MM Maximum Pretravel, 3.18 MM Minimum Overtravel, 1.52 MM Min Differential Travel, UL E12252, CSA LR41372, For Packaging Equipment, Special Machinery, Textile Machinery, Conveyors, Construction Machinery And Equipment, Printing Trades Machinery, Overhead Cranes And Hoists
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Electrical Subtype:
Limit Switch
Voltage Rating:
125/250 VAC, 125/250 VDC
Action:
DPDT Snap Action
Actuator:
Top Plunger With Boot Seal
Amperage Rating:
10 AMP Inductive, 0.3/0.15 AMP Resistive
Application:
For Packaging Equipment, Special Machinery, Textile Machinery, Conveyors, Construction Machinery And Equipment, Printing Trades Machinery, Overhead Cranes And Hoists
Brand Name:
Honeywell
Connection:
1/2-14 NPT Conduit
Contact Configuration:
2 NC/2 NO
Country Of Origin:
US
Enclosure:
IP66, NEMA 1, 3, 4 Split Zinc Die-Cast
Mounting:
Side Mount
Number Of Poles:
2
Operating Temperature:
-32 To 71
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Special Features:
Grounding screw; Pre-leaded or connector termination options
Sub Brand:
Micro Switch
Type:
E6 Series Medium Duty Enclosed Limit Switch
UNSPSC:
39122213
Manufactured By:
IDEA Honeywell
