QDT DISTB STRN CLM

QDT DISTB STRN CLM by MacLean Power Systems

$
14
28
/ EA / 25 EA
($0.57 / 1)
  • Part Number: DA-15-N
  • UPC: 00662711011609
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

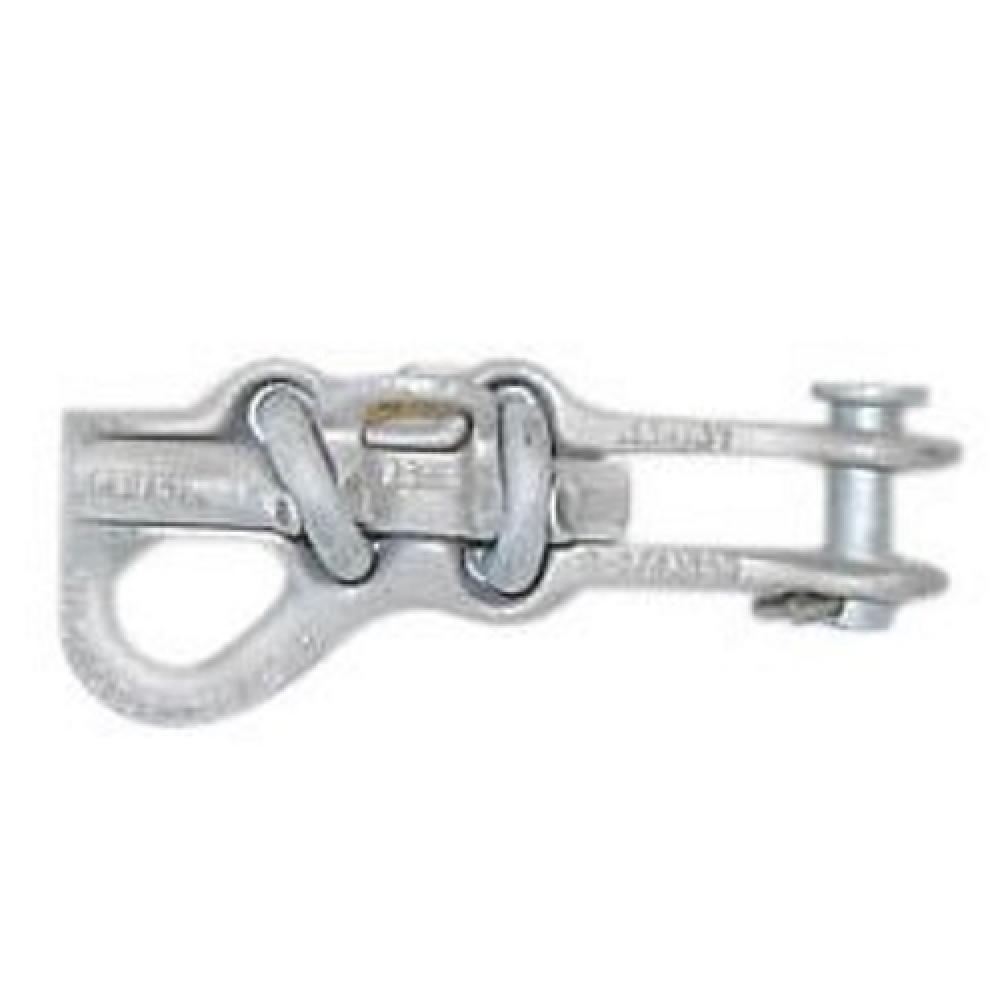

MacLean Power Systems DA-15-N Clamp, DA Series Bolted Dead End, Body and Keeper : Aluminum, Conductor Range (Main/Primary): ACSR: 6-3/0 AWG, Aluminum: 6-4/0 AWG, 0.16 - 0.522 IN, Number Of Conductors/Ports (Main/Primary): 1, 1/2 IN Bolt
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Electrical Subtype:
Mechanical Connectors
Length:
4.2500 IN
Material:
Body and Keeper : Aluminum
Bolt Size:
1/2
Brand Name:
MacLean Power Systems
Conductor Range (Main/Primary):
ACSR: 6-3/0 AWG, Aluminum: 6-4/0 AWG, 0.16 - 0.522 IN
Country Of Origin:
UKN
Lead Time:
6.000 WK
Number of Conductors/Ports (Main/Primary):
1
Order Minimum:
25.000 EA
Order Multiple:
25.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Design - quadrant (Pistol) strain; Recommended torque on U bolt: 40 - 45 LB-FT; Ultimate strength 8000 LB; Recommended torque on U-bolts
Stock Type:
Shelf Stock
Tech Drawing Link:
Type:
DA Series Bolted Dead End Clamp
UNSPSC:
39121408
Warranty Link:
Weight:
1.240 L
Manufactured By:
MacLean Power Systems
