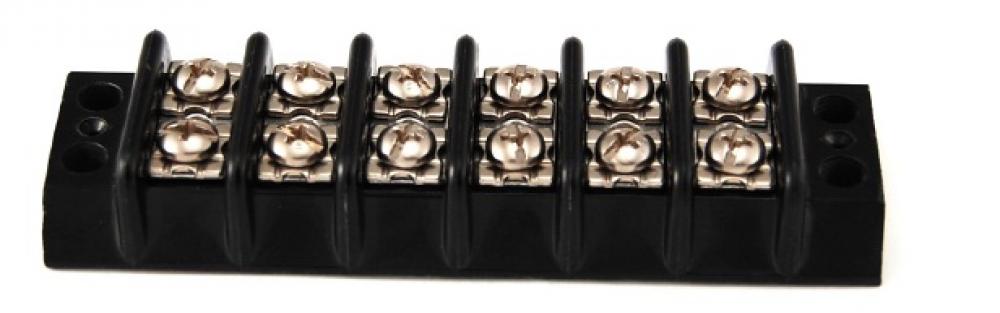

Closed Back Phenolic Double Row Terminal Blocks by Marathon Special Products

MARATHON; TERMINAL BLOCK; CLOSED BACK, 300 SERIES, DOUBLE ROW; WIRE SIZE: 10 - 22 AWG; SPACING: 9/16 IN; AMPERAGE RATING: 30 AMP FOR LISTED RING LUG OR UNPREPARED WIRE; VOLTAGE RATING: 600 VAC/DC; MATERIAL: CONNECTOR (CONTACT): TIN PLATED BRASS; INSULATOR BASE: PHENOLIC; DRIVE SCREW (RIVET): STAINLESS STEEL; SCREW 8-32 SADDLE PLATE PHIL-SLOT: NICKEL PLATED STEEL; MOUNTING: 6.190 IN MOUNTING HOLE DISTANCE; SIZE: 6.600 IN LENGTH X 1.120 IN WIDTH X 0.530 IN HEIGHT; MAXIMUM INSULATOR BASE TEMPERATURE: 150 DEG C UL RTI; FLAMMABILITY RATING OF INSULATOR BASE: UL 94V-0; ACCESSORIES: MARKING STRIPS - SUB MOUNTED, BLACK ONLY (FB), MARKING STRIPS - TOP MOUNTED, WHITE ONLY (SW), COVER - TOP MOUNTED. ORDER CW (WHITE) OR CB (BLACK), CAN BE PRINTED; APPLICATION TORQUE: 20 IN-LB; STORAGE AND TRANSPORTATION TEMPERATURE RANGE: -35 DEG C TO 110 DEG C; NUMBER OF POLES: 10; SHORT CIRCUIT CURRENT RATING: 10000 AMP; INCLUDES: SEMS PRESSURE SADDLE SCREW
