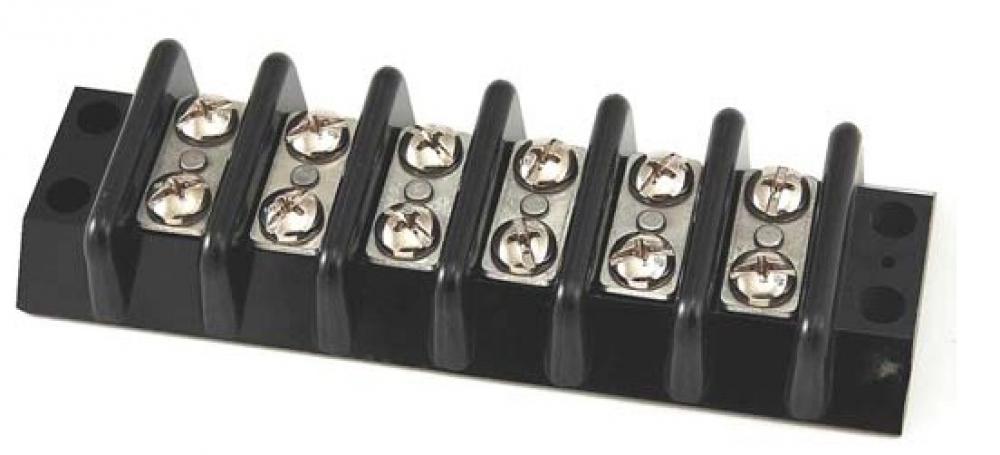

Closed Back Phenolic Double Row Terminal Blocks by Marathon Special Products
Call For Price
- Part Number: 406
- UPC: 00784337454063
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
MARATHON; TERMINAL BLOCK; CLOSED BACK, 400 SERIES, DOUBLE ROW; WIRE SIZE: 10 - 12 AWG; SPACING: 11/16 IN; AMPERAGE RATING: 30 AMP FOR UNPREPARED WIRE, 65 AMP FOR LISTED LUG; VOLTAGE RATING: 600 VAC/DC; MATERIAL: CONNECTOR (CONTACT): TIN PLATED BRASS; INSULATOR BASE: PHENOLIC; DRIVE SCREW (RIVET): STAINLESS STEEL; SCREW 10-32 BINDER HEAD PHIL-SLOT: NICKEL PLATED STEEL; MOUNTING: 4.810 IN MOUNTING HOLE DISTANCE; SIZE: 5.250 IN LENGTH X 1.810 IN WIDTH X 0.750 IN HEIGHT; MAXIMUM INSULATOR BASE TEMPERATURE: 150 DEG C UL RTI; FLAMMABILITY RATING OF INSULATOR BASE: UL 94V-0; ACCESSORIES: PHIL-SLOT BRASS SCREW (PSB), LINE TO LINE JUMPER (LL400) OR (J603); APPLICATION TORQUE: 20 IN-LB; STORAGE AND TRANSPORTATION TEMPERATURE RANGE: -35 DEG C TO 110 DEG C; NUMBER OF POLES: 6; SHORT CIRCUIT CURRENT RATING: 10000 AMP
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Electrical Subtype:
Terminal Blocks
Material:
Connector (Contact): Tin Plated Brass; Insulator Base: Phenolic; Drive Screw (Rivet): Stainless Steel; Screw 10-32 Binder Head Phil-Slot: Nickel Plated Steel
Size:
5.250 IN Length X 1.810 IN Width X 0.750 IN Height
Spacing:
11/16IN
Voltage Rating:
600VAC/DC
Amperage Rating:
30 AMP For Unprepared Wire, 65 AMP For Listed Lug
Brand Label:
MARATHON
Brand Name:
Marathon
Country of Origin:
USA
Mounting:
4.810 IN Mounting Hole Distance
Order Minimum value quantity:
25 EA
Order Multiple:
25 EA
Special Features:
Features: Copper Wire Only Wire Range For Wire Binding Screw: 10 - 12 AWG (Unprepared Wire); Application Torque: 20 In lB; 11/16 IN Centers; Electrical Ratings: 30A For Unprepared Wire (Based On NEC Table 310-16, 75 DEG C Columns); 65 AMP For Listed Lug; 6
Standard:
UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806, CSA Certified, CSA C22.2 No. 158, File No. LR19766, CE Compliant IEC 60947-7-1, RoHS Compliant
Type:
Closed Back, 400 Series, Double Row
UNSPSC:
39121410
Wire Size:
10 - 12AWG
Manufactured By:
Marathon Special Products
