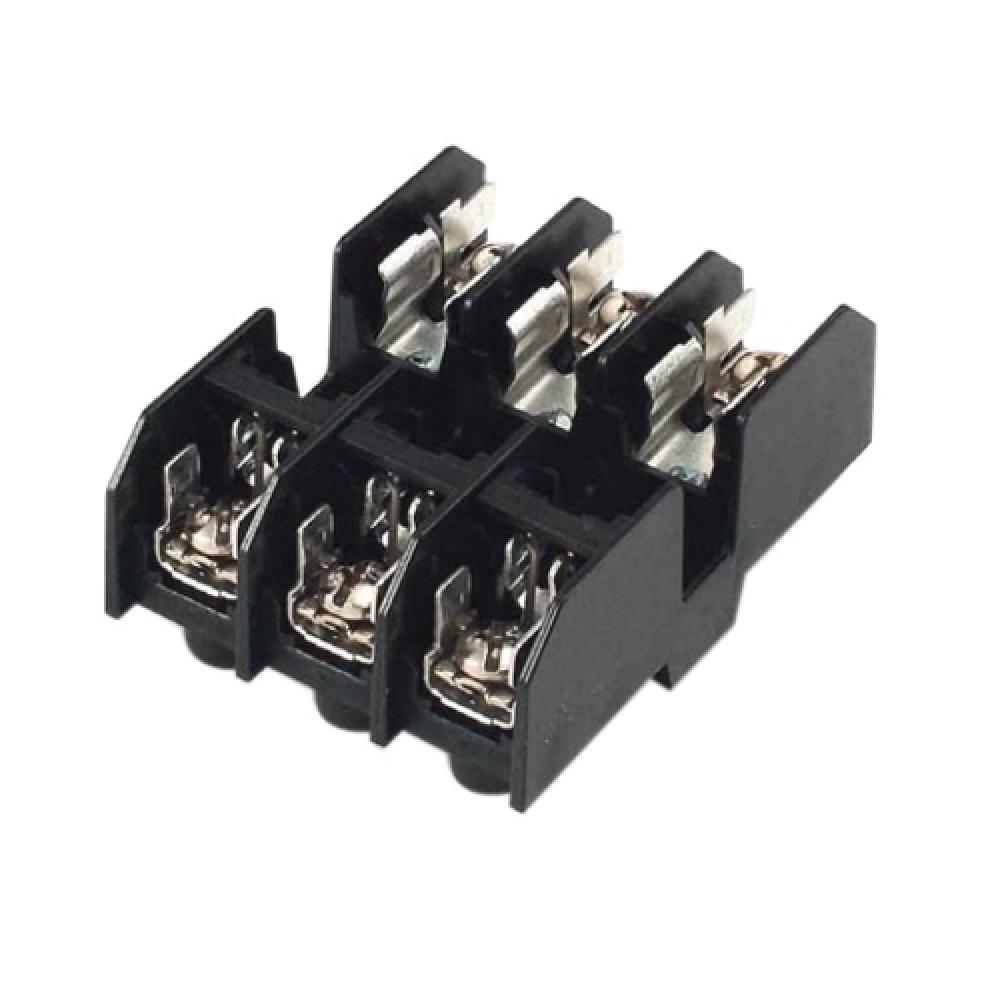

FUSE HOLDER,30 AMP,600 VAC/VDC,CC,PNL,1 by Marathon Special Products
Call For Price
- Part Number: 6CC30A1SPQ
- UPC: 00784337155007
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
MARATHON SPECIALTY PRODUCTS 6CC30A1SPQ FUSE HOLDER, 30 AMP, 600 VAC/VDC, CLASS: CC, FUSE CLIP: TIN PLATED COPPER ALLOY, INSULATOR BASE: GLASS FILLED POLYCARBONATE (THERMOPLASTIC), MOUNTING: PANEL, SCREW CONNECTION, '-40 TO 150 DEG C UL RTI, 3.13 IN HEIGHT, 0.85 IN WIDTH, 1.29 IN DEPTH, NUMBER OF POLES: 1, 10 - 14 AWG, UL 4248-1 AND UL 4248-4, UL FILE NUMBER IZLT.E35113, CSA C22.2 NUMBER 39-M1987, CSA FILE NUMBER LR21455, CE CERTIFIED TO IEC 60947-1, ROHS COMPLIANT, FOR ATDR, ATMR, ATQR, CCMR, FRQ-R, KLDR, KLKR, KTK-R AND LP-CC FUSES
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Electrical Subtype:
Fuse Holder
Material:
Fuse Clip: Tin Plated Copper Alloy, Insulator Base: Glass Filled Polycarbonate (Thermoplastic)
Voltage Rating:
600VAC/VDC
Amperage Rating:
30AMP
Application:
For ATDR, ATMR, ATQR, CCMR, FRQ-R, KLDR, KLKR, KTK-R And LP-CC Fuses
Brand Label:
MARATHON SPECIALTY PRODUCTS
Brand Name:
Marathon Specialty Products
Class:
CC
Connection:
Screw
Country of Origin:
USA
Mounting:
Panel
Operating Temperature:
-40 To 150 DEG C UL RTI
Order Minimum value quantity:
50 EA
Order Multiple:
50 EA
Special Features:
Holds fuse size 13/32 IN diameter X 1-1/2 IN; 0 - 30 AMP max (amperage rating based on maximum fuse rating for that physical size); Copper wire only; Approved for 200 KAMP withstand rating; Mechanical ratings: Flammability rating of insulator base: UL 94V-
Standard:
UL 4248-1 And UL 4248-4, UL File Number IZLT.E35113, CSA C22.2 Number 39-M1987, CSA File Number LR21455, CE Certified To IEC 60947-1, RoHS Compliant
Type:
Fuse Holder
UNSPSC:
39121624
Manufactured By:
Marathon Special Products
