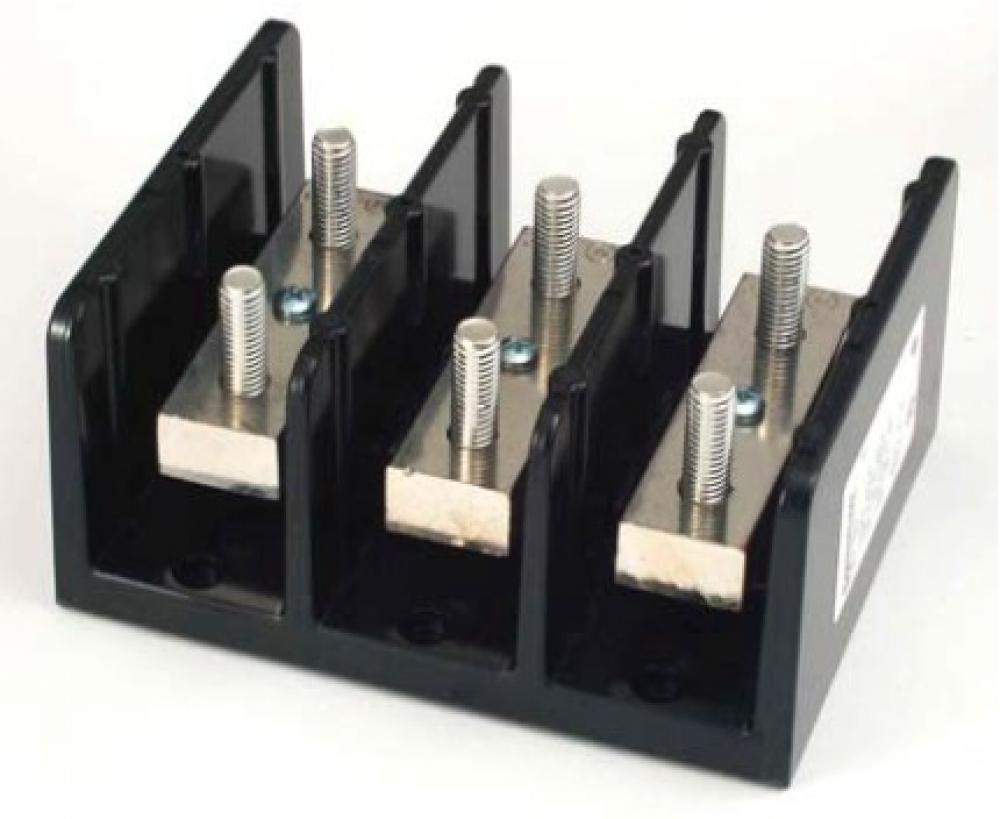

Power Stud Block,Marathon,840 AMP,UL 94V-0,3 PL, by Marathon Special Products
Call For Price
- Part Number: 1443614
- UPC: 00784337436144
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
MARATHON; POWER STUD BLOCK; WIRE SIZE: WIRE RANGE: LINE SIDE: LISTED RING LUGS OR BUS BARS, LOAD SIDE: LISTED RING LUG OR BUS BARS; VOLTAGE RATING: 600 VAC/DC, CE RATED VOLTAGE (UI): 1000 VAC/DC PER IEC 60947-7-1; AMPERAGE RATING: 840 AMP; MATERIAL: CONNECTOR: TIN PLATED HIGH CONDUCTIVITY COPPER; INSULATOR BASE: PHENOLIC; THREADED STUD: TIN PLATED BRASS; HEX NUT: NICKEL PLATED BRASS (1 SUPPLIED PER STUD); SIZE: 650 IN LENGTH X 4.750 IN WIDTH X 2.900 IN HEIGTH; MAXIMUM INSULATOR BASE TEMPERATURE: -40 DEG C/F TO 150 DEG C UL RTI; FLAMMABILITY RATING OF INSULATOR BASE: UL 94V-0; ACCESSORIES: COVER: CLEAR PROTECTIVE PLASTIC COVER. CATALOG DESCRIPTION CC144X (X NUMBERS OF POLES: 1, 2 OR 3), MARKING STRIP: WHITE VINYL STRIP TO MARK CIRCUITS. SUPPLIED WITH MOUNTING SCREWS; NUMBER OF POLES: 3; SHORT CIRCUIT CURRENT RATING: 10000 AMP; MATERIAL GROUP: IIIA; POLLUTION DEGREE: 3
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Electrical Subtype:
Terminal Blocks
Material:
Connector: Tin Plated High Conductivity Copper; Insulator Base: Phenolic; Threaded Stud: Tin Plated Brass; Hex Nut: Nickel Plated Brass (1 Supplied Per Stud)
Size:
650 IN Length X 4.750 IN Width X 2.900 IN Heigth
Voltage Rating:
600 VAC/DC, CE Rated Voltage (Ui): 1000 VAC/DC Per IEC 60947-7-1
Amperage Rating:
840AMP
Brand Label:
MARATHON
Brand Name:
Marathon
Country of Origin:
USA
Order Minimum value quantity:
10 EA
Order Multiple:
10 EA
Special Features:
Features: Wire Range: Line Side: Listed Ring Lugs Or Bus Bars; Load Side: Listed Ring Lug Or Bus Bars; Electrical Ratings:- 840 AMP; CE Rated Voltage (Ui): 1,000 V AC/DC Per IEC 60947-7-1 Material Group: IIIA; Pollution Degree: 3; 600 Volts AC/DC (UL 1059
Standard:
UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.E62806, CSA Certified, CSA C22.2 No. 158, File No. LR19766, CE Compliant IEC 60947-7-1, RoHS Compliant
UNSPSC:
39121410
Wire Size:
Wire Range: Line Side: Listed Ring Lugs Or Bus Bars, Load Side: Listed Ring Lug Or Bus Bars
Manufactured By:
Marathon Special Products
