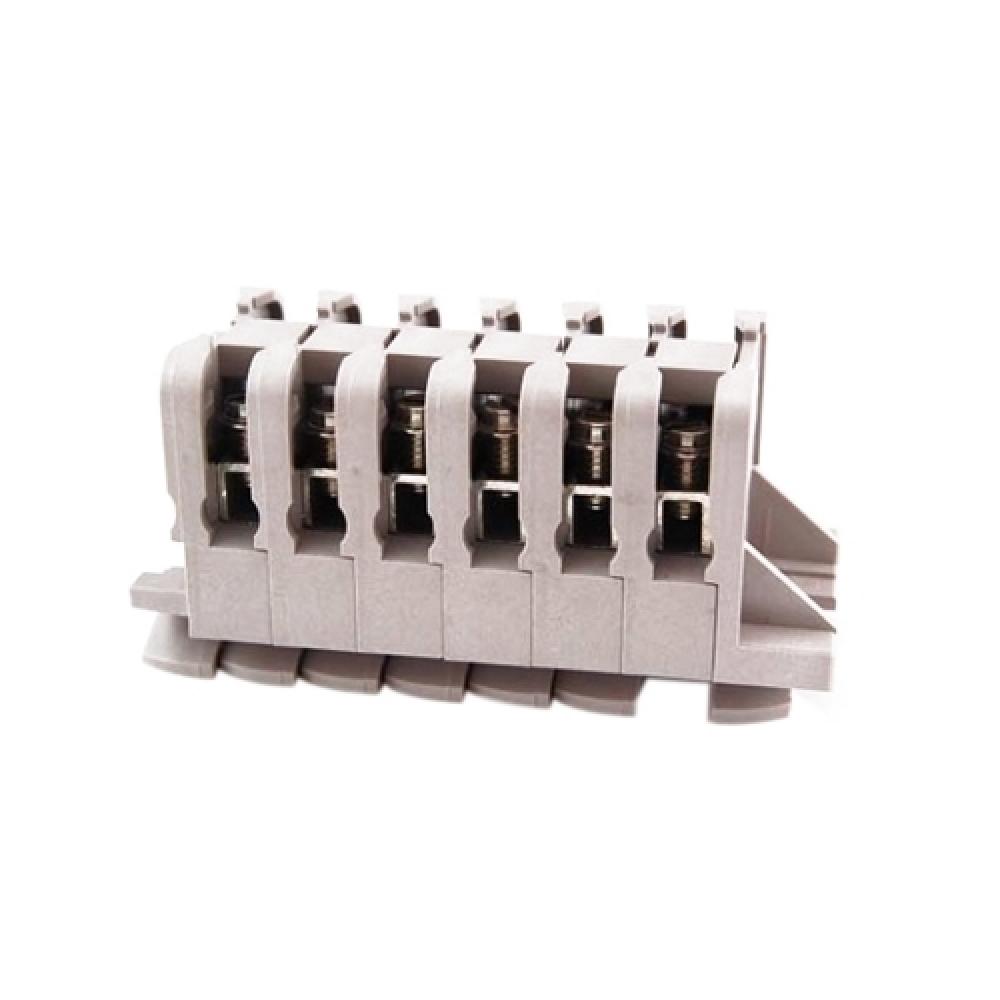

SECTIONAL TERM BLOCKS by Marathon Special Products
Call For Price
- Part Number: 6G38TSKKC
- UPC: 00784337000055
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
MARATHON SPECIALTY PRODUCTS 6G38 TSKK C TERMINAL BLOCK, SECTIONAL, 10 - 22 AWG, 3/8 IN SPACING, 40 AMP, 600 VAC/VDC, CONNECTOR: TIN PLATED COPPER TUBULAR SCREW, INSULATOR BASE: GLASS-FILLED POLYCARBONATE (GRAY THERMOPLASTIC), GRAY, MOUNTING: CHANNEL, SCREW CONNECTION, 1-1/4 IN DEPTH X 1.54 IN HEIGHT, -40 TO 125 DEG F INSULATOR BASE, UL 1059 LISTED, UL FILE NUMBER XCFR2.E62806, CSA C22.2 NUMBER 158, CSA FILE NUMBER LR19766, CE CERTIFIED TO IEC 60947-7-1, ROHS COMPLIANT
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Electrical Subtype:
Terminal Blocks
Amperage Rating:
40AMP
Color:
Gray
Material:
Connector: Tin Plated Copper Tubular Screw, Insulator Base: Glass-Filled Polycarbonate (Gray Thermoplastic)
Spacing:
3/8IN
Voltage Rating:
600VAC/VDC
Brand Label:
MARATHON
Brand Name:
Marathon Specialty Products
Connection:
Screw
Country of Origin:
USA
Mounting:
Channel
Order Minimum value quantity:
100 EA
Order Multiple:
100 EA
Special Features:
32 circuits per foot; Copper wire only; Wire termination torque: 16 LB-IN; Electrical ratings: 40 AMP (Based on NEC table 310-16, 75 DEG C columns); Short circuit current rating: 10 KAMP (Default); Factory and field wiring; Mechanical ratings: Insulator ba
Standard:
UL 1059 Listed, UL File Number XCFR2.E62806, CSA C22.2 Number 158, CSA File Number LR19766, CE Certified To IEC 60947-7-1, RoHS Compliant
Type:
Sectional Terminal Block
UNSPSC:
39121410
Wire Size:
10 - 22AWG
Manufactured By:
Marathon Special Products
