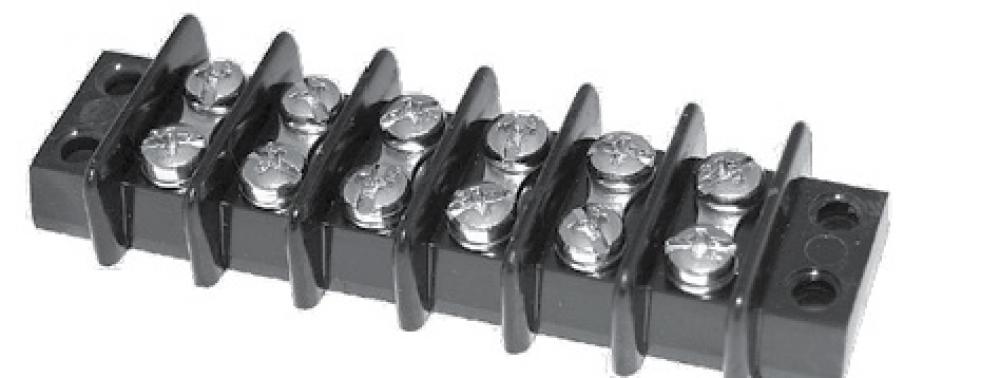

MARATHON; TERMINAL BLOCK; KULKA; DOUBLE ROW; WIRE SIZE: 12 - 22 AWG; SPACING: 7/16 IN; AMPERAGE RATING: 20 AMP; VOLTAGE RATING: 300 VAC/DC; MATERIAL: CONNECTOR (EYELET): NICKEL PLATED BRASS; INSULATOR BASE: PHENOLIC, SCREW 6-32 BINDER HEAD PHIL-SLOT: NICKEL PLATED BRASS; MOUNTING: 9.170 IN MOUNTING HOLE DISTANCE; CONNECTION: INDIVIDUAL SCREW TERMINALS; SIZE: 9.480 IN LENGTH X 1.130 IN WIDTH X 0.500 IN HEIGHT; MAXIMUM INSULATOR BASE TEMPERATURE: 150 DEG C UL RTI; ACCESSORIES: JJ (GDI-30F) MATERIAL AVAILABLE; NUMBER OF POLES: 20; INCLUDES: PHIL-SLOT BRASS SCREW (PSB)

Specifications

Details

Electrical Category:

Electrical Distribution Equipment

Electrical Subcategory:

Terminals And Accessories

Electrical Subtype:

Terminal Blocks

Amperage Rating:

20AMP

Material:

Connector (Eyelet): Nickel Plated Brass; Insulator Base: Phenolic, Screw 6-32 Binder Head Phil-Slot: Nickel Plated Brass

Size:

9.480 IN Length X 1.130 IN Width X 0.500 IN Height

Spacing:

7/16IN

Voltage Rating:

300VAC/DC

Brand Label:

MARATHON

Brand Name:

Marathon

Connection:

Individual Screw Terminals

Country of Origin:

USA

Mounting:

9.170 IN Mounting Hole Distance

Order Minimum value quantity:

25 EA

Order Multiple:

25 EA

Special Features:

Features: Base, General Purpose Phenolic, 150 DEG C (UL RTI); Open Back Design; JJ (GDI-30F) Material Available; Screws, 6 - 32 Binder Head, Phil-Slot, Steel; Terminals, Plated Brass; 1-23 Poles; 7/16 IN Centers; Wire Range With Wire Binding Screw 12 - 22

Standard:

UL Recognized File No. XCFR2.E47811, CSA Certified File No. LR19766, CE Lised, RoHS Compliant

Sub Brand:

Kulka

Type:

Double Row

UNSPSC:

39121410

Wire Size:

12 - 22AWG

Manufactured By:

Marathon Special Products
