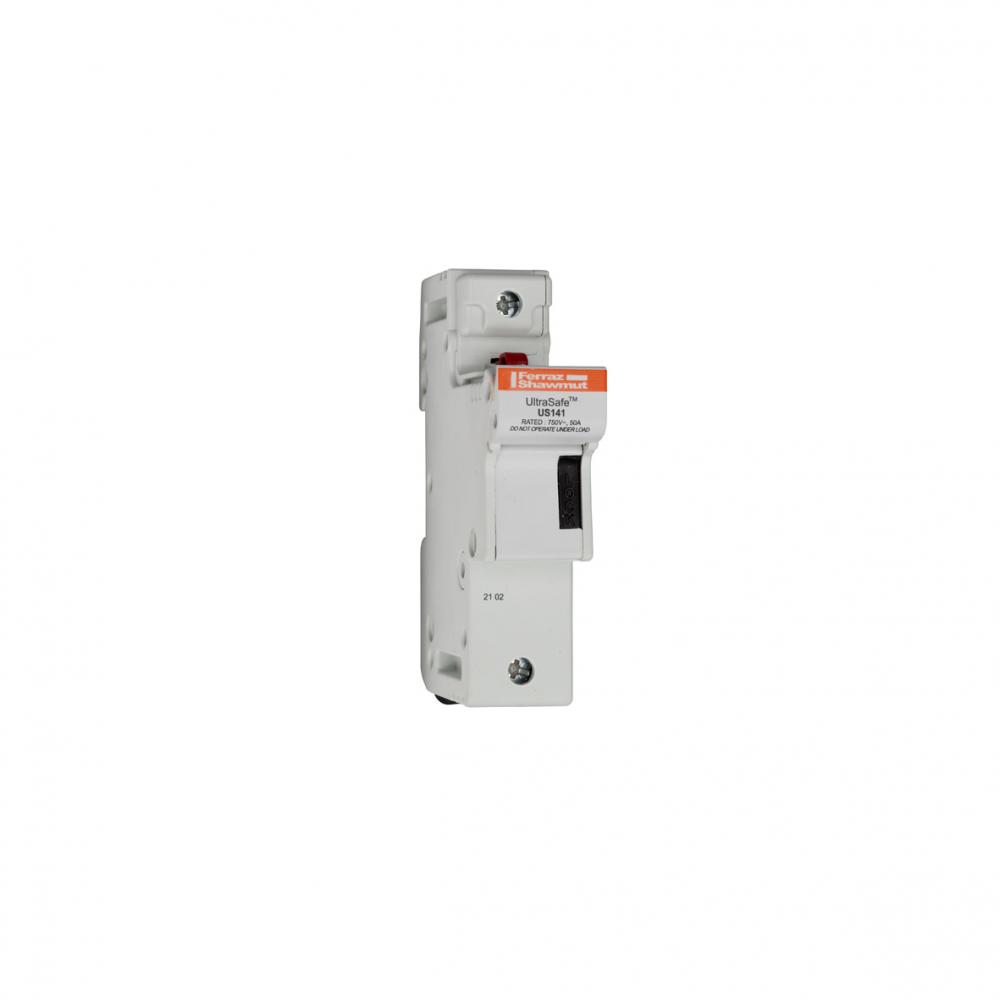

Fuse Holder 800VAC 1000VDC UL 14x51 1-Pole IP20 by Mersen
$
674
55
/ EA
/ 6 EA
($112.42 / 1)
- Part Number: Z331153
- UPC: 00782001310882
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole IP20
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
50
Application:
All circuits up to 750VAC for protection of motors, transformers, low voltage distribution, control circuits Non-load operation
Brand Name:
Mersen
Class:
IEC Cylindrical 14x51mm
Connection:
Pressure Plate
Country Of Origin:
TN
Material:
Polyamide
Mounting:
DIN rail acc. EN 60715
Number Of Poles:
1
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
Phase:
1
RoHS Compliance:
Yes
Size:
3.01 x 1.04 x 4.36
Spec Sheet:
Special Features:
Finger safe Degree of protection: IP20 Optional visual blown fuse indicator & microswitch DIN rail mounting Modular design Lockable Multi-pole assembly kit available Sealable in closed and open position Plastic material UL94V2 mini Flame retardant material
Standard:
UL Recognized Component, UL4248, guide IZLT2, file E52283 CSA Certified C22.2, class 6225, file 32169 IEC 60269-2 and IEC 60947-3 RoHS Compliant Plastic material: NF 16101 & 16102 Requirement 2 Compliant
Stock Type:
Shelf Stock
Sub Brand:
UltraSafe™
Type:
UL/CSA Fuse Holders
UNSPSC:
39121624
Voltage Rating:
750
Weight:
.315 lb
Manufactured By:
Mersen
