24-14AWG Pushn Lvr Typ Wr Cn 2Pl 200 Pck

24-14AWG Pushn Lvr Typ Wr Cn 2Pl 200 Pck by Morris

Call For Price
  • Part Number: 23297
  • UPC: 00601986232975
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

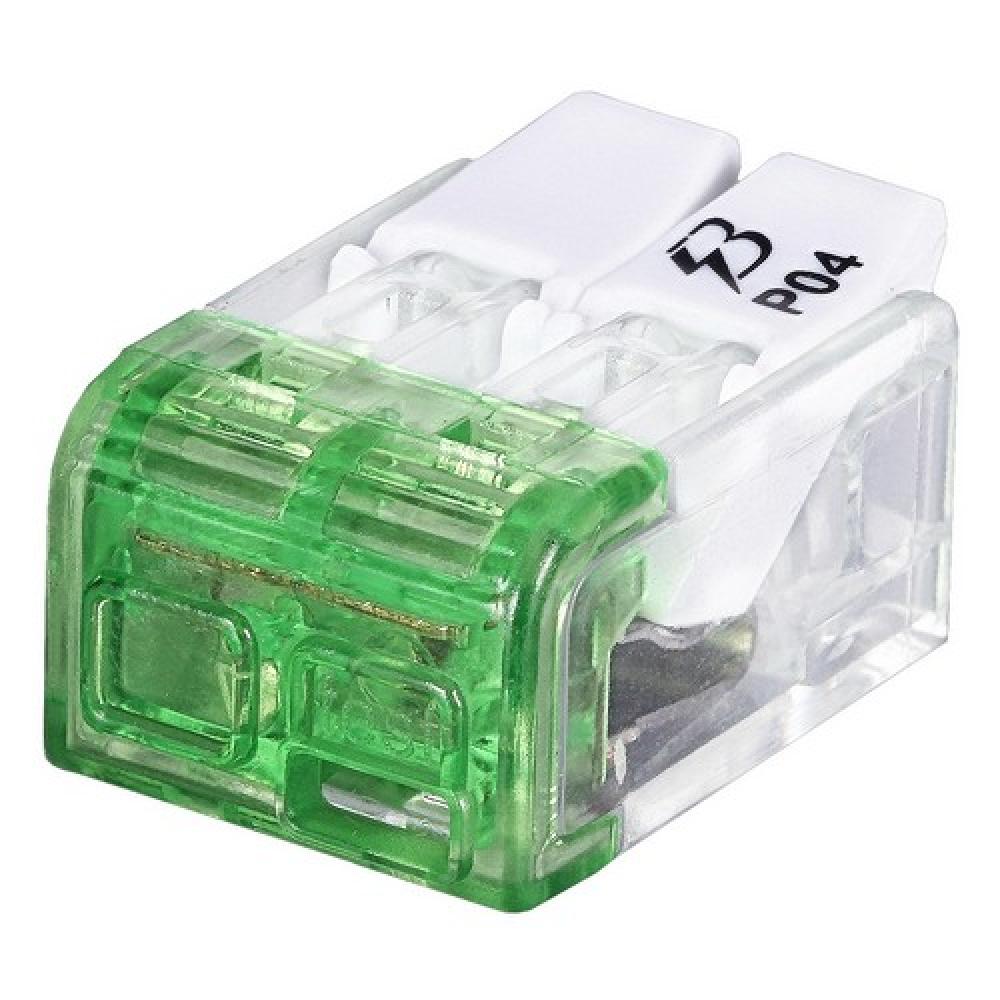

24-14 AWG Push-In Lever Type Wire Connector 2 Pole 200 Pack - These Easy Push Wire Connectors are Fast and Effective Alternative to Wire Nuts.24-14 AWG Push-In Lever Type Wire Connector 2 Pole 200 Pack features include: Easy Push-In Wire Connectors are simple to install - instead of Twisting or Taping, simply Push Wires Into Contact Port to save you time and money Accepts Either Stranded or Solid Wire Low Wire Insertion Force allows fast, easy connections No-Twist Connection reduces repetitive motion fatigue See-thru for visual connection inspectionTest Port for Continuity Testing Electrolytic Tin-Plated Internal Copper Bus for high conductivity Housing Material: Polycarbonate, UL 94V-2 flame retardant Current: 24A or 32A Voltage: 600V Working Temperature: 221deg;F (105deg;C) UL Listed for Copper Conductors only(Bag 200 Pack) Order Qty of 200 = 1 Bag of 200Below is more info on our 24-14 AWG Push-In Lever Type Wire Connector 2 Pole 200 Pack
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Brand Name:
MORRIS PRODUCTS
Country Of Origin:
CHN
Material:
Electrolytic Tin-Plated Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Stock Type:
Shelf Stock
Temperature Rating:
221°F
UNSPSC:
39121409
Weight:
.006 L
Manufactured By:
Morris
