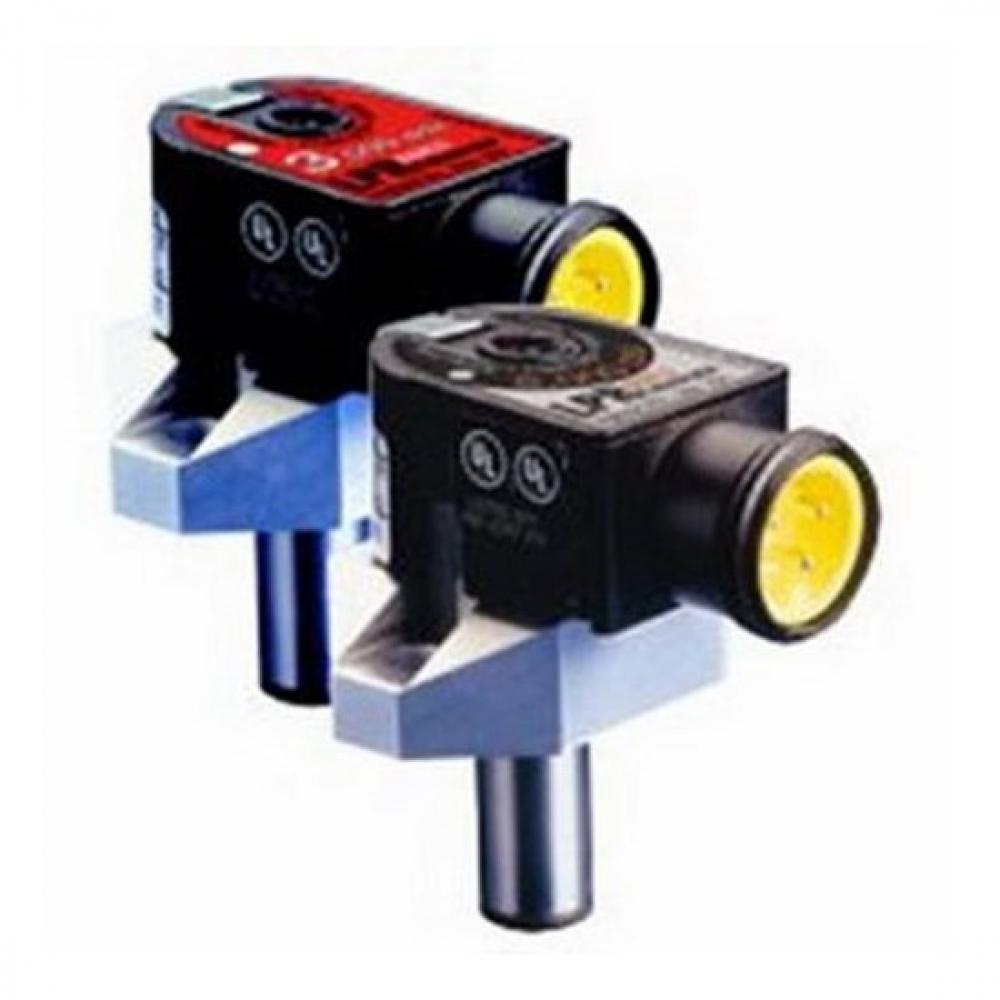

![PROX SENSOR,EE230,3PIN MINI,PR LEN 1.25"](/vendors/4050/large/PIC_NEE23011320.jpg "PROX SENSOR,EE230,3PIN MINI,PR LEN 1.25"")
PROX SENSOR,EE230,3PIN MINI,PR LEN 1.25" by Namco, div of Danaher Special Prod
Call For Price
- Part Number: NEE23011320
- UPC: 00635766113208
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Cylinder Position Inductive Proximity Sensor, Model: EE230, Output: NO, Connection: 3-Pin Mini, Sensing Distance: 0.08 IN, Voltage Rating: 20 - 230 VAC/VDC, Frequency Response: 16 HZ, Size: 1.37 IN Height X 2 IN Width X 2.21 IN Depth, Enclosure: NEMA 4, 6, 12 And 13, Environmental Conditions: Ambient Temperature: -4 To 158 DEGF, Temperature Drift (Maximum): Plus/Minus 10 PCT, Hysteresis: 3 - 10 PCT, Repeatability: Less Than Plus/Minus 1.25 PCT, Load Current: 5 - 50 MILAMP, LED Indicator: Red/Green, Leakage Current: 1.7 MILAMP, Pressure Rating: 3000 PSI, Number Of Wires: 2, Probe Length: 1-1/4 IN, UL Listed, For Industrial Applications
Specifications
Details
Electrical Category:
Testing And Measuring
Electrical Subcategory:
Sensors
Electrical Subtype:
Proximity Sensors
Size:
1.37 IN Height X 2 IN Width X 2.21 IN Depth
Voltage Rating:
20 - 230
Application:
For Industrial Applications
Brand Name:
Namco
Connection:
3-Pin Mini
Country Of Origin:
UKN
Enclosure:
NEMA 4, 6, 12 And 13
Environmental Conditions:
Ambient Temperature: -4 To 158 DEGF
Frequency Response:
16
Model:
EE230
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
false
RoHS Compliance:
No
Sensing Distance:
0.08
Special Features:
Weld field and electrical noise immunity; Standard latching short circuit protection; Predictable, consistent electrical performance; 100 PCT tested and burned-in; Purpose-designed housings and materials
Type:
Cylinder Position Inductive Proximity Sensor
UNSPSC:
41111926
Manufactured By:
Namco, div of Danaher Special Prod
