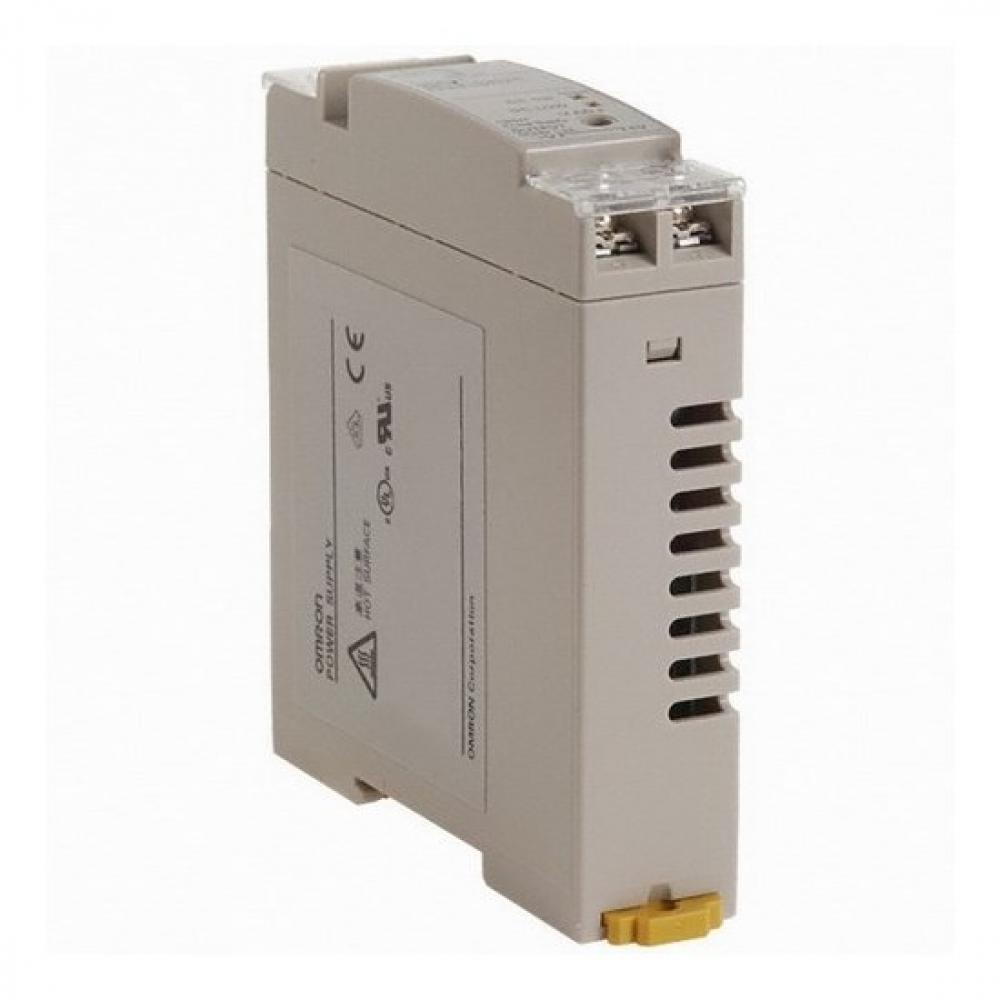

SMPS,INPUT: 100 - 240 VAC,OUTPUT: 24 V

SMPS,INPUT: 100 - 240 VAC,OUTPUT: 24 V by Omron Industrial

Call For Price
  • Part Number: S8VS01524
  • UPC: 00476487115795
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Switch Mode Power Supply, Voltage Rating: Input: 100 - 240 VAC, Output: 24 V, Amperage Rating: Output: 0.65 AMP, Wattage: 15 WTT, Frequency Rating: 50/60 HZ, Phase: 1 PH, Efficiency: 83 PCT Typical At 100 VAC Input, 80 PCT Typical At 200 VAC Input, Insulation: Between All Outputs And All Inputs/ PE Terminals: 100 MOHM Minimum (At 500 VDC), Mounting: DIN Rail, Environmental Conditions: Ambient Temperature - Operating: -10 To 60 DEG C, Storage: -25 To 65 DEG C; Ambient Humidity - Operating: 25 - 85 PCT RH, Storage: 25 - 90 PCT RH; Dielectric Strength - Between All Inputs And All Outputs: 3 KVAC For 1 MINT (Detection Current: 20 MILAMP); Vibration Resistance: 10 - 55 HZ, 0.375 MM Single Amplitude In Each 3 Directions For 2 HR; Shock Resistance - 150 M/S2, In Each 6 Directions 3 Times, Length: 22-1/2 MM, Width: 96.4 MM, Height: 85 MM, Ripple: 2 PCT (p-p) Maximum, Power Factor: 0.9 Minimum, UL508 (Listing, Class 2: Per UL1310), UL UR: UL60950-1 (Recognition), cUL: CSA C22.2 Number 107.1 (Class 2: Per Number 223), cUR: CSA C22.2 Number 60950-1, EN50178, EN60950-1, Emission Enclosure: Conforms To EN61204-3 Class B, Emission AC Mains: Conforms To EN61204-3 Class B And Based On FCC Class A, EMS: EN61204-3 Class B, Standard Number: VDE0160, VDE0805 Teil 1 File number, SEMI: F47-0200 (200 VAC Input), For Commercial/Medical Purpose
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Electrical Subtype:
Power Supply Units
Height:
85
Length:
22-1/2
Voltage Rating:
Input: 100 - 240 VAC, Output: 24 V
Wattage:
15
Width:
96.4
Amperage Rating:
Output: 0.65 AMP
Application:
For Commercial/Medical Purpose
Brand Name:
Omron
Country Of Origin:
CHN
Efficiency:
83 PCT Typical At 100 VAC Input, 80 PCT Typical At 200 VAC Input
Environmental Conditions:
Ambient Temperature - Operating: -10 To 60 DEG C, Storage: -25 To 65 DEG C; Ambient Humidity - Operating: 25 - 85 PCT RH, Storage: 25 - 90 PCT RH; Dielectric Strength - Between All Inputs And All Outputs: 3 KVAC For 1 MINT (Detection Current: 20 MILAMP); V
Frequency Rating:
50/60
Insulation:
Between All Outputs And All Inputs/ PE Terminals: 100 MOHM Minimum (At 500 VDC)
Mounting:
DIN Rail
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
No
Special Features:
Indication monitor and simple functions for easy system commissioning; Status displayed on 3-digit, 7-segment display
Type:
Switch Mode Power Supply
UNSPSC:
39121004
Manufactured By:
Omron Industrial
