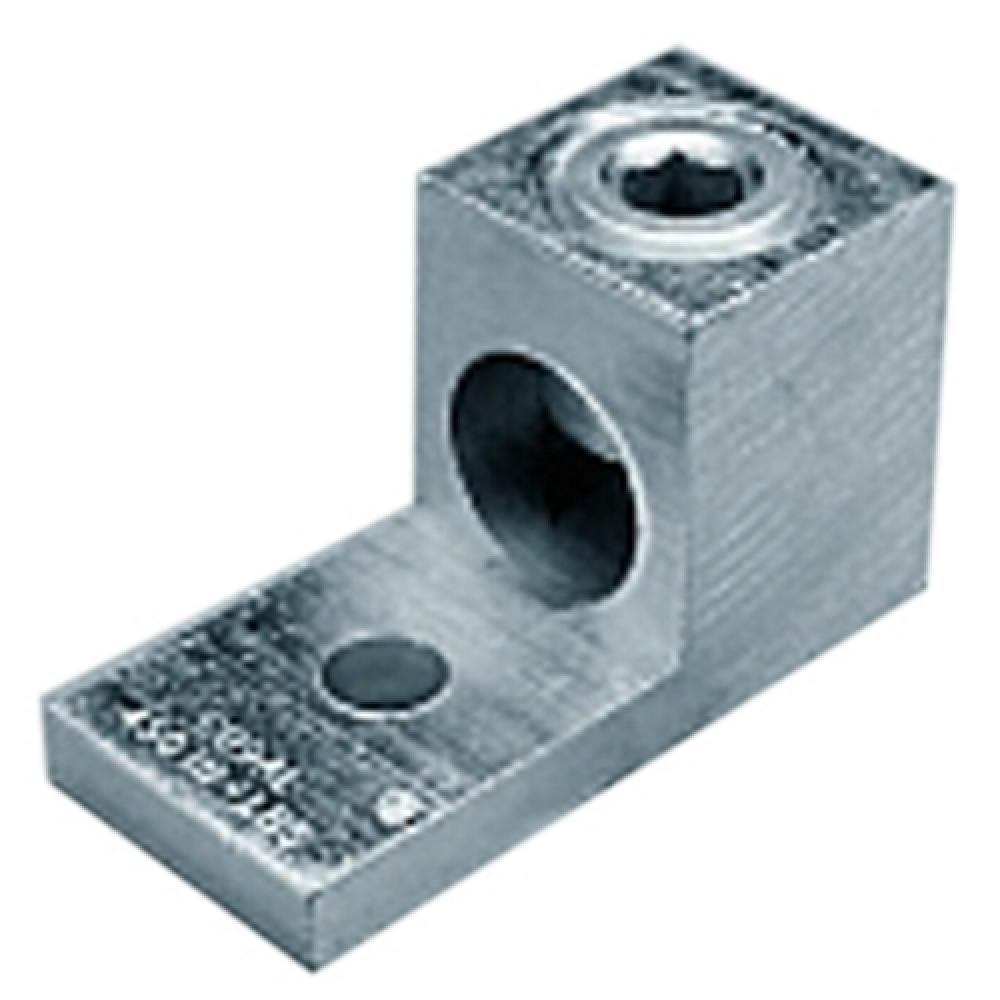

ALUM SOLDERLESS LUG by Penn-Union
$
1
02
/ EA
/ 50 EA
($0.02 / 1)
- Part Number: LA 6
- UPC: 00785037446082
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Penn Union LA 6 Solderless Lug, Connection: Screw, Number Of Conductors: 1, Aluminum, 600 V, Conductor Range (Main/Primary): 14 - 6 AWG, Number Of Ports: 1, Number Of Mounting Holes: 1, 1-1/16 IN, 1/2 IN, 1/2 IN, 3/32 IN Thickness, Torque: 45 IN-LB, Screw Size : Slot, 17/64 IN Mounting Hole Diameter, UL 486B Listed AL9CU, CSA Certified, For Copper Or Aluminum Conductor
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Electrical Subtype:
Mechanical Connectors
Material:
Aluminum
Voltage Rating:
600
Application:
For Copper Or Aluminum Conductor
Brand Name:
Penn Union
Brochure:
Conductor Range (Main/Primary):
14 - 6
Connection:
Screw
Country Of Origin:
USA
Number Of Conductors:
1
Number Of Mounting Holes:
1
Number Of Ports:
1
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
No
Special Features:
Body fabricated from high strength aluminum alloy extrusion; Lug is 100 PCT reusable using screw driver; Maximum conductivity, compact design, light weight with ultimate strength; Electro-tin plated to assure minimum contact resistance and protection again
Standard:
UL 486B Listed AL9CU, CSA Certified
Tech Drawing Link:
Type:
Solderless Lug
UNSPSC:
39121408
Manufactured By:
Penn-Union
