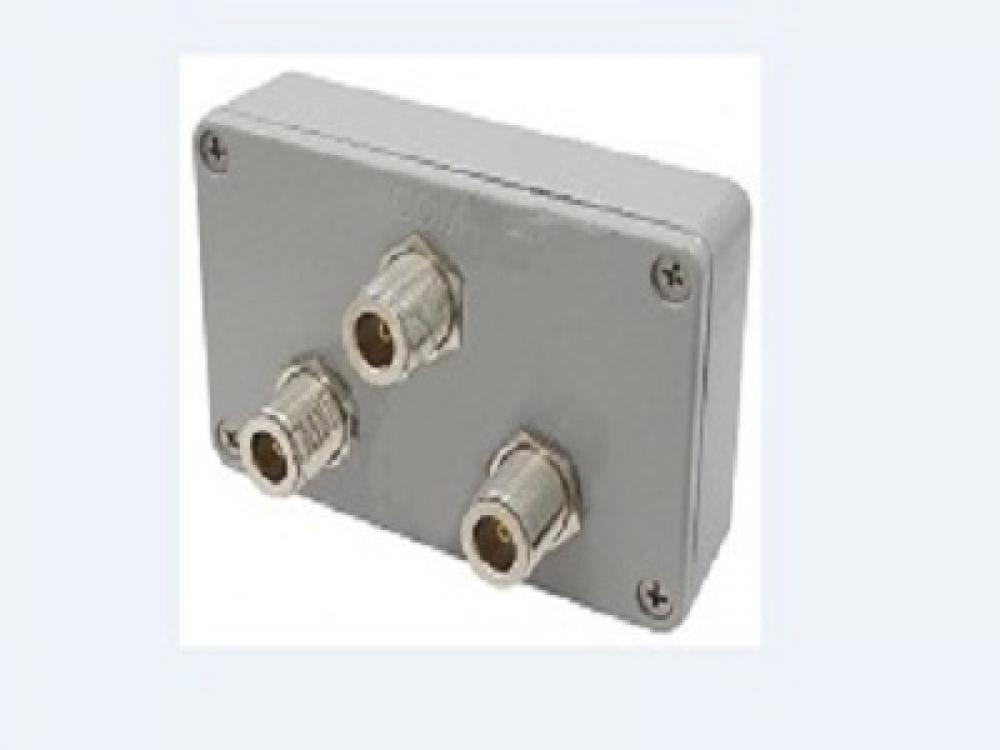

2-way power divider 900MHz, N jack by ProSoft Technology
$
130
00
/ EA
/ 1 EA
- Part Number: PD9-2
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specially designed for installation ease, this new 3-way Tee RF power divider/combiner allows unobstructed access to all connector ports with even the largest coaxial cables. Available with silver-plated N-Female connectors. A rugged construction and exce
Specifications
Details
Electronics Category:
Other Electronics /vendors/vendorImages
Electronics Subcategories:
Electronic Components
Height:
1.7
Length:
4.6
Wattage:
25
Application:
Industrial
Brand Name:
PROSOFT
Connector:
N-Female
Country Of Origin:
USA
Frequency Range:
800 to 1000
Impedance:
50
Input VSWR:
Less Than 1.5:1
Insertion Loss:
Less Than 0.3
Isolation:
15
Operating Temperature:
-40 to 85
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Parent Figure/Model Number:
PD9-2
Spec Sheet:
Special Features:
Compatible with 900 MHz; Industrial grade; RoHS Compliant; Cast aluminum construction; Weatherproof for indoor or outdoor use; DC power will pass to all ports; N-Female connectors
Standard:
RoHS
Stock Type:
Shelf Stock
Sub Brand:
RLPD
Type:
Power Dividers for Multiple Antennas
UNSPSC:
32101525
Warranty Link:
Manufactured By:
ProSoft Technology
