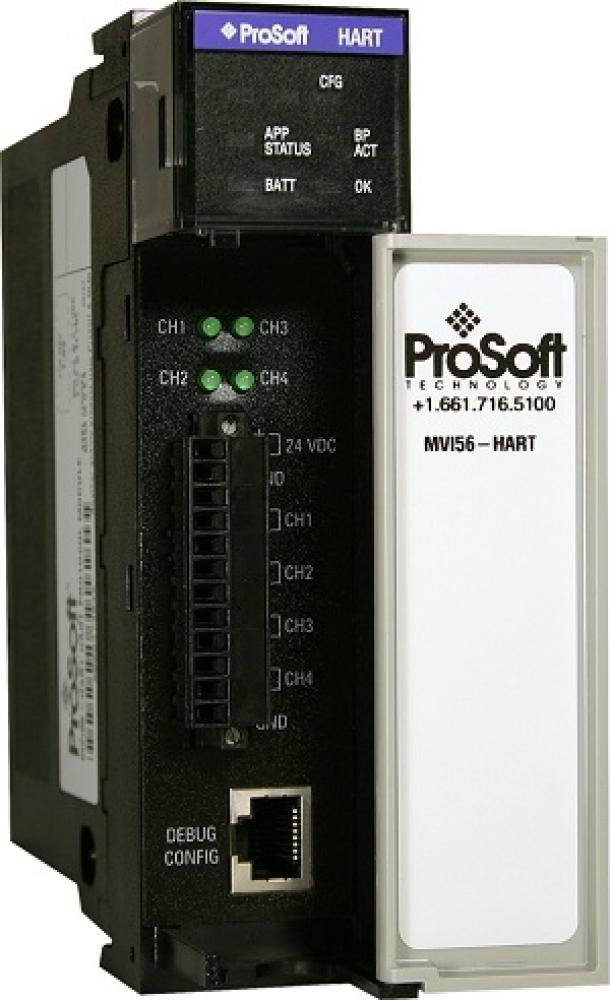

HART Multi-drop Communication Module-4 Channel by ProSoft Technology
$
2,495
00
/ EA
/ 1 EA
- Part Number: MVI56-HART
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Master Multi-drop Network Interface Module allows ControlLogix I/O compatible processors to easily communicate with HART slave devices. The MVI56-HART module interfaces up to 15 devices on each HART channel with the ControlLogix processor. Four channels o
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Programmable Control
Electrical Subtype:
Programmable Logic Controller Module
Alarm Contacts:
LED
Application:
For Instruments in Process Control Industry
Brand Name:
PROSOFT
Country Of Origin:
USA
Enclosure:
Aluminium
Interface:
RS-232, 485 and 422
Isolation:
500 V
Mounting:
Rack
Number Of Channels:
10/100 Base-T
Operating Temperature:
0 to 60°C (32 to 140°F)
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Power Supply:
800 mA @ 5 V DC, 3mA @ 24V DC,
Spec Sheet:
Special Features:
Single Slot - 1756 backplane compatible,The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module,Ladder Logic is used for data transfer between module and processor. Sample ladder
Standard:
EX Certificate; CB Safety; CE Mark; GOST-R; UL/cUL; Class 1 Div 2; UL/cUL; Class1 Div (Canada)
Stock Type:
Shelf Stock
Sub Brand:
MV56
Type:
Communication Module
UNSPSC:
32151705
Warranty Link:
Manufactured By:
ProSoft Technology
