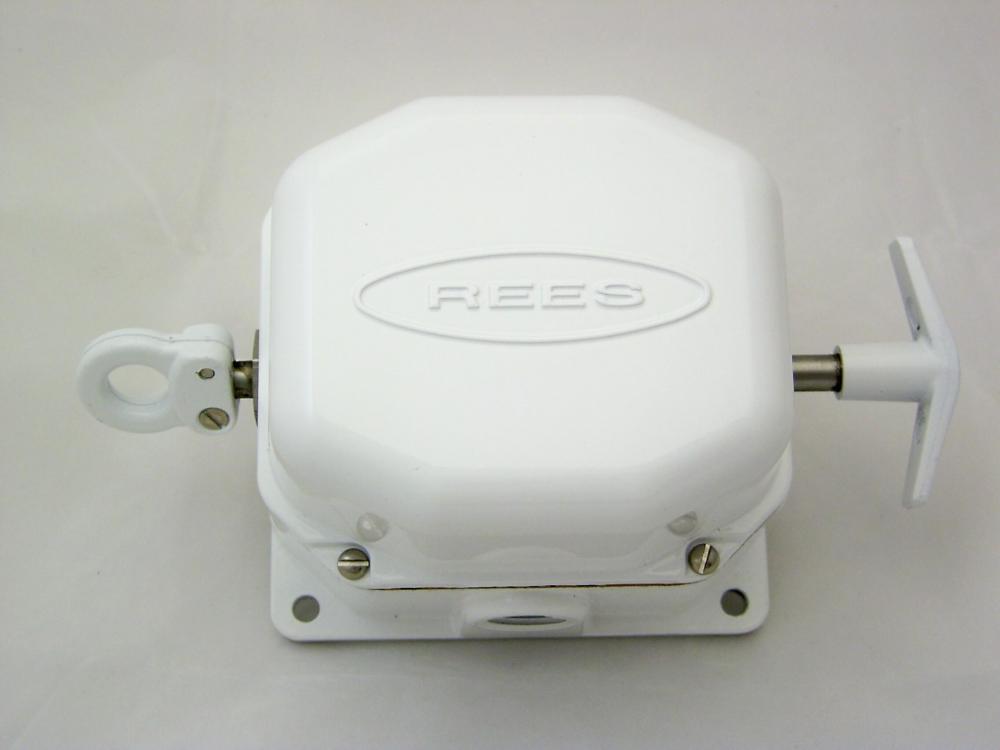

Cable Operated Switch,Rees,Slack CBL,CNT Configu by Rees

Rees; Cable Operated Switch; Slack Cable; Contact Configuration: 2 NO + 2 NC; Material: High Quality Die-Cast Aluminum Housing; Size: 3.900 IN Height; Mounting: 4.380 SQ-IN Hole Distance; Operating Temperature: 0 To +55 DEG C; Environmental Conditions: -40 To +85 DEG C Storage Temperature; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC At Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC At Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI/NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP; Inrush Current: 60, 30, 15, 12 AMP; Trip Force: 15 LB; Operating Force Between 10 Ft Supports: 3 LB; Mechanical Life: 150000 Operations; Wire Size: 14/2 AWG Stranded; Nema: 4X (Indoor); Color: White Housing; Reset Type: Manual; Finish: Powder Coated Painted Housing; Old Catalog Number: 2669; Ip: 66; Conduit Openings: (2) 3/4 IN NPT; Contact Finish: Gold Plated
