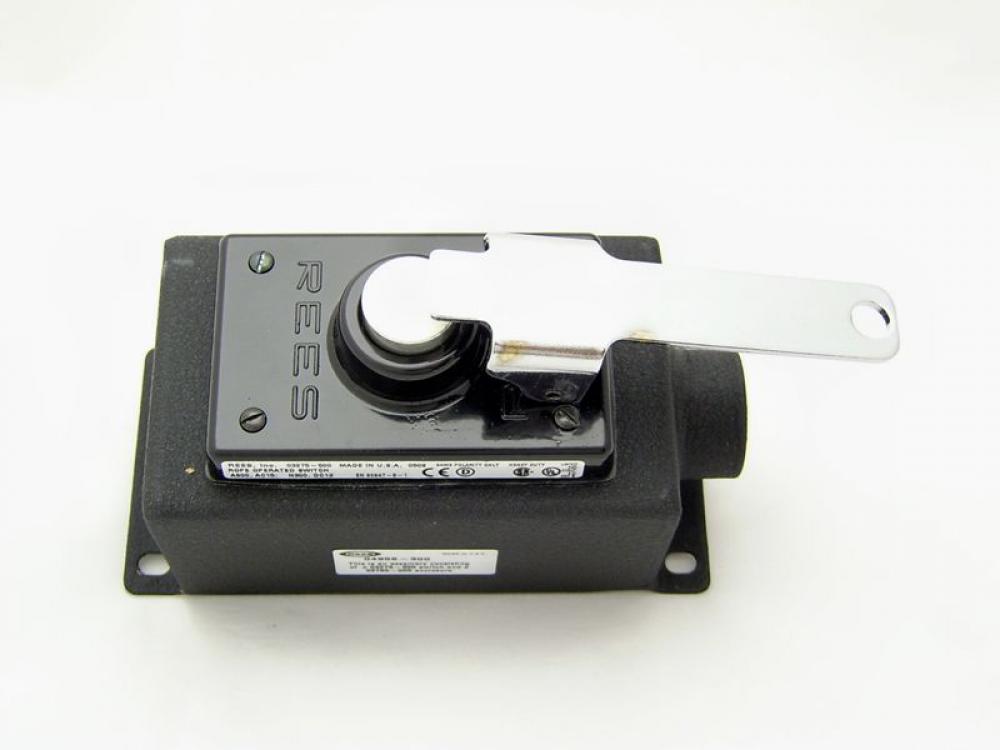

Rope Operated Switch,Rees,Slack CBL,CNT Configur by Rees

Rees; Rope Operated Switch; Slack Cable; Contact Configuration: #64 2 NO + 2 NC; Action: Momentary Snap; Size: 2.810 IN Length X 7.270 IN Width; Actuator: Pushbutton; Operating Temperature: 0 To +55 DEG C; Environmental Conditions: -40 To +85 DEG C Storage Temperature; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC At Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC At Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI/NEMA ICS 2-1988; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP; Inrush Current: 60, 30, 15, 12 AMP; Trip Force: 5 LB; Operating Force Between 10 Ft Supports: 0.600 LB; Mechanical Life: 1000000 Operations; Wire Size: 14/2 AWG Stranded; Nema: 12/13; Ip: 65; Includes: (1) 03275-500 Switch And (1) 02765-000 Sheet Metal Enclosure Powder Coat Painted Black, Snap Action Contacts; Contact Finish: Gold Plated; Lever Finish: Nickel Plated
