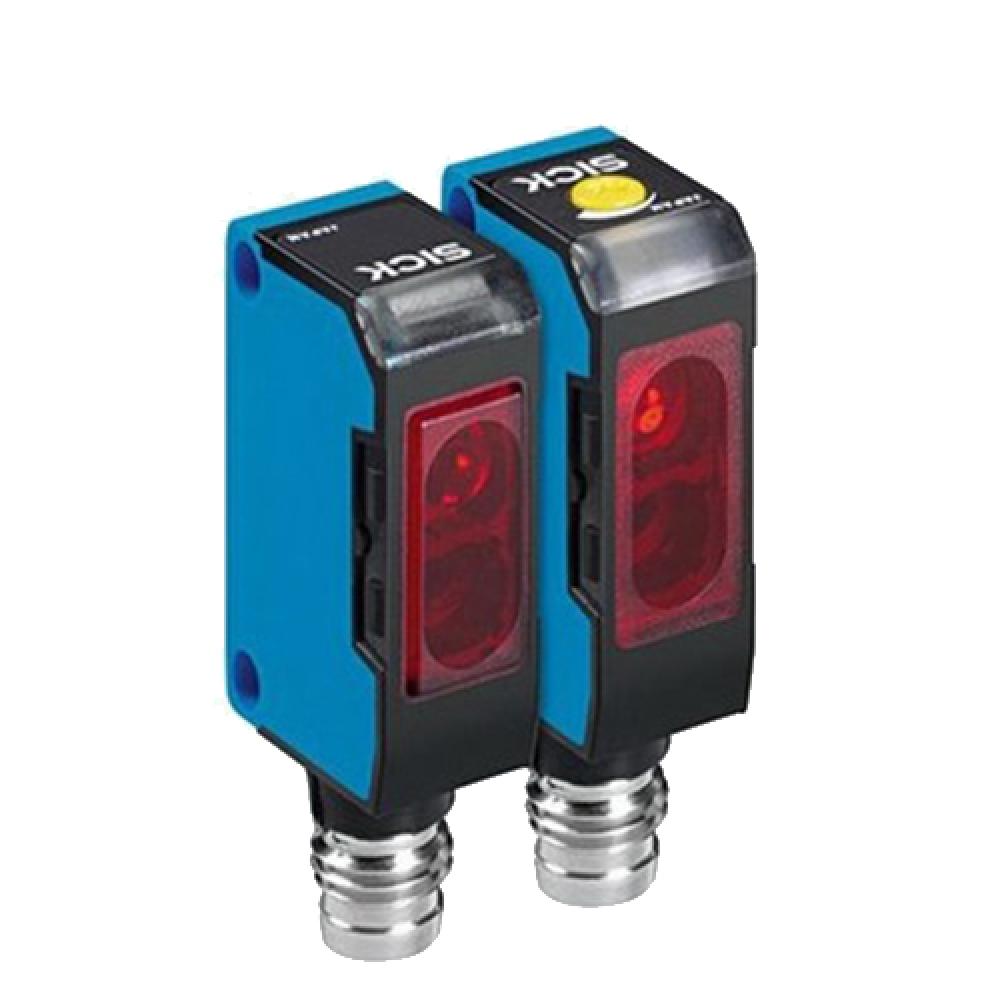

PHOTOELECTRIC SENSOR,10 - 30 VDC,IP67 by Sick Optic AG
Call For Price
- Part Number: WS/WE 150-P430
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Through-Beam Photoelectric Sensor, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than Or Equal To 15 MILAMP, Sensing Range: 0 - 4.4 MR, Sensing Beam: Visible Red LED, Output: PNP, Light/Dark Switching, Open Collector, Enclosure: IP67, Response Time: Less Than Or Equal To 0.5 MS, Connection: 4-Pin M8, Size: 10 MM Width X 28 MM Height X 17-1/2 Depth, Operating Temperature: -25 To 55 DEG C, Environmental Conditions: Storage Temperature: -40 To 75 DEG C, Protection Class: II, Housing Design: Rectangular, Switching Frequency: 1000 HZ, UL NRNT2.E128350, CUL NRNT8.E128350, CE Certified, RU Listed, For Flexible Production And Packaging Processes At A Confectionary Manufacturer
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Size:
10 MM Width X 28 MM Height X 17-1/2 Depth
Voltage Rating:
10 - 30
Amperage Rating:
Less Than Or Equal To 15 MILAMP
Application:
For Flexible Production And Packaging Processes At A Confectionary Manufacturer
Brand Name:
Sick Optic Electronic
Connection:
4-Pin M8
Country Of Origin:
UKN
Enclosure:
IP67
Environmental Conditions:
Storage Temperature: -40 To 75 DEG C, Protection Class: II
Operating Temperature:
-25 To 55
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
PNP, Light/Dark Switching, Open Collector
Response Time:
Less Than Or Equal To 0.5 MS
RoHS Compliance:
No
Sensing Beam:
Visible Red LED
Sensing Range:
0 - 4.4
Special Features:
Sensing distance of up to 4.4 MR; Sensitivity control on device via potentiometer; Light/dark switching selectable via control wire; Reliable detection of the smallest of objects; Reliable detection of fast-moving objects; Highly visible red light for easy
Type:
Through-Beam Photoelectric Sensor
UNSPSC:
39121528
Manufactured By:
Sick Optic AG
