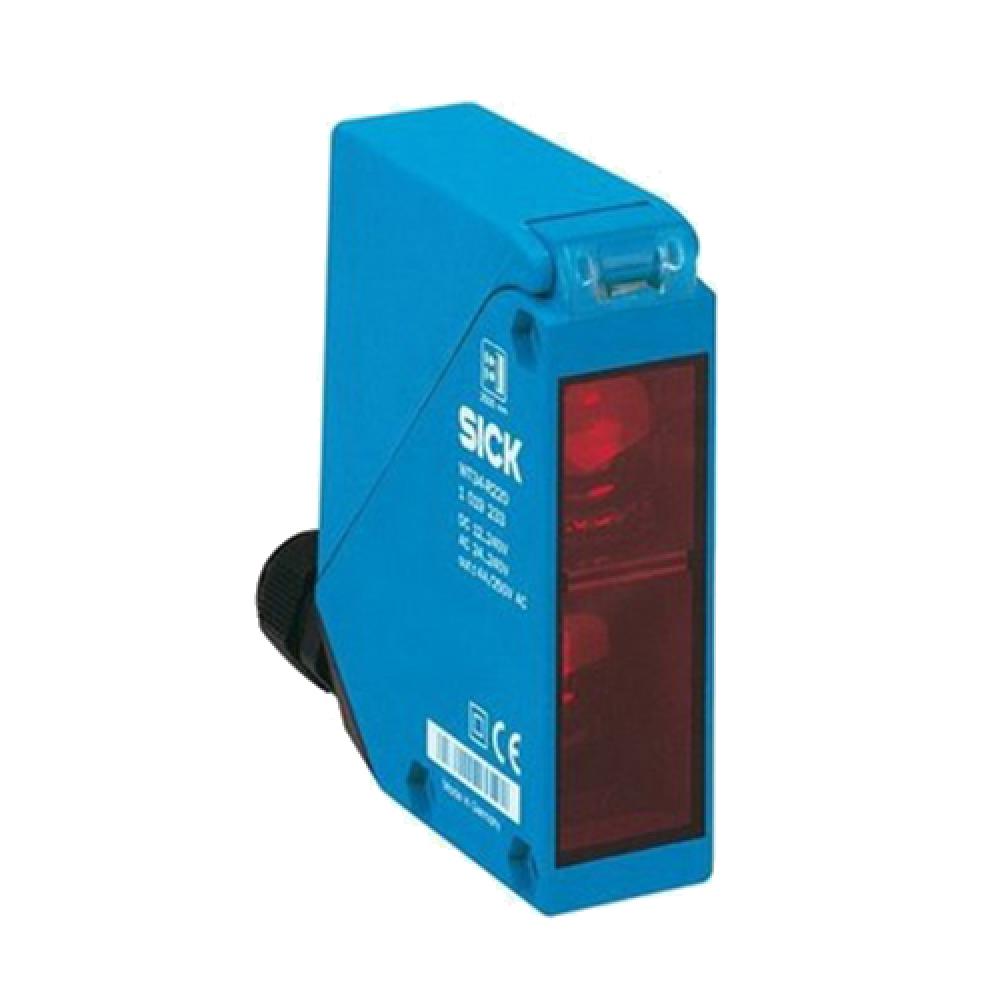

PHOTOELECTRIC SENSOR,10 - 30 VDC,IR LED by Sick Optic AG
Call For Price
- Part Number: WT 34-B410
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Proximity Background Suppression Photoelectric Sensor, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than Or Equal To 50 MILAMP, Sensing Range: 100 - 2500 MM, Sensing Beam: Infrared LED, Output: NPN, PNP, Dark Switching, Light Switching, Selectable via Light/Dark Selector, Selectable via PNP/NPN Selector, Enclosure: IP67 ABS Plastic, Response Time: Less Than 500 MICSEC, Connection: 4-Pin M12, Size: 27 MM Width X 92 MM Height X 70 MM Depth, Operating Temperature: -40 To 60 DEG C, Environmental Conditions: Storage Temperature: -40 To 75 DEG C, Protection Class: II, Housing Design: Rectangular, Switching Frequency: 1000 HZ, Light Spot Distance: 2500 MM, UL NRKH.E181493, NRKH7.E181493, CE Certified
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photoelectric Sensors
Size:
27 MM Width X 92 MM Height X 70 MM Depth
Voltage Rating:
10 - 30
Amperage Rating:
Less Than Or Equal To 50 MILAMP
Brand Name:
Sick Optic Electronic
Connection:
4-Pin M12
Country Of Origin:
UKN
Enclosure:
IP67 ABS Plastic
Environmental Conditions:
Storage Temperature: -40 To 75 DEG C, Protection Class: II
Operating Temperature:
-40 To 60
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
NPN, PNP, Dark Switching, Light Switching, Selectable via Light/Dark Selector, Selectable via PNP/NPN Selector
Response Time:
Less Than 500 MICSEC
RoHS Compliance:
No
Sensing Beam:
Infrared LED
Sensing Range:
100 - 2500
Special Features:
Precise background suppression at long ranges; Immune to ambient light and crosstalk from another sensor; Switch selectable PNP or NPN output and light/dark switching; Optional test input, adjustable ON and OFF time delays, alarm output; M12 or terminal ch
Type:
Proximity Background Suppression Photoelectric Sensor
UNSPSC:
39121528
Manufactured By:
Sick Optic AG
