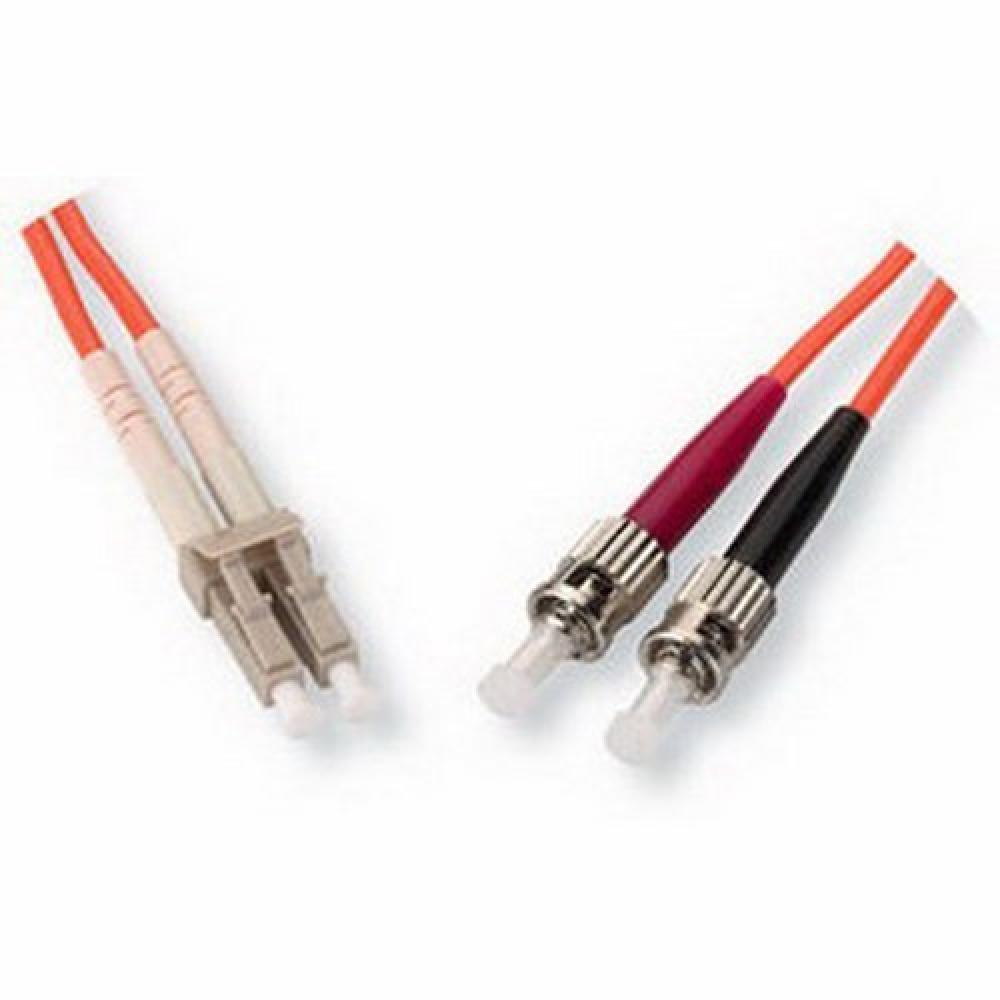

OPTICAL FIBER PATCH CORD,62.5 MICM,2 MR by Signamax
Call For Price
- Part Number: FC922M
- UPC: 00763474141456
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Duplex Multimode Optical Fiber Patch Cord, Wire Size: 62.5 MICM, 2 MR Length, 1.8 MM Outside Diameter, Number Of Cores: 2, -20 To 70 DEG C, Jacket Material: OFNR Rated Thermoplastic, Orange Jacket, AttenuationL: Return Loss: PC Less Than Or Equal To -30 DB; Insertion Loss: 0.2 DB Typical, 0.3 DB Maximum, Plug Type: LC-ST, Boot Type: Slim-Profile With Durable Flexible Cable Strain Relief, Cladding Diameter: 125 MICM, Transmission Performance: Bandwidth: 850 NMTR: 200 MHZ-KM, 1300 NMTR: 500 MHZ-KM, Environmental Conditions: -40 To 80 DEG C Storage Temperature, 95 PCT RH Non-Condensing Humidity, UL Listed, BICSI Approved, ANSI/TIA-568-C.3, ISO/IEC 11801 Second Edition, CENELEC EN 50173, UL94V-0, FOCIS (ANSI/TIA/EIA-604) Compliant, For FDDI PMD ANSI X3.166, 10BASE-SX, 100BASE-SX, 100BASE-FX, 1000BASE-SX, 1000BASE-LX, 10GBASE-S, 10GBASE-LX4, 10GBASE-LRM, Fiber Channel 100-MX-SN-I, Fiber Channel 200-MX-SN-I, Fiber Channel 400-MX-SN-1, Fiber Channel 1200-MX-SN-1
Specifications
Details
Electrical Category:
Tools
Electrical Subcategory:
Fiber Optic Tools And Accessories
Electrical Subtype:
Fiber Optic Patch Cord
Color:
Orange Jacket
Length:
2
Application:
For FDDI PMD ANSI X3.166, 10BASE-SX, 100BASE-SX, 100BASE-FX, 1000BASE-SX, 1000BASE-LX, 10GBASE-S, 10GBASE-LX4, 10GBASE-LRM, Fiber Channel 100-MX-SN-I, Fiber Channel 200-MX-SN-I, Fiber Channel 400-MX-SN-1, Fiber Channel 1200-MX-SN-1
Attenuation:
Return Loss: PC Less Than Or Equal To -30 DB; Insertion Loss: 0.2 DB Typical, 0.3 DB Maximum
Boot Type:
Slim-Profile With Durable Flexible Cable Strain Relief
Brand Name:
Signamax
Country Of Origin:
UKN
Jacket Material:
OFNR Rated Thermoplastic
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Outside Diameter:
1.8
Plug Type:
LC-ST
RoHS Compliance:
No
Special Features:
Can be used as cross-connect jumpers, equipment and work area cords; Signamax optical fiber patch cords are manufactured using riser-grade (OFNR) cable; Duplex and simplex versions; ST, SC, FC, LC, connectors; Uniform and hybrid cord versions; 100 PCT fact
Temperature Rating:
-20 To 70
Type:
Duplex Multimode Optical Fiber Patch Cord
UNSPSC:
43223326
Wire Size:
62.5
Manufactured By:
Signamax
