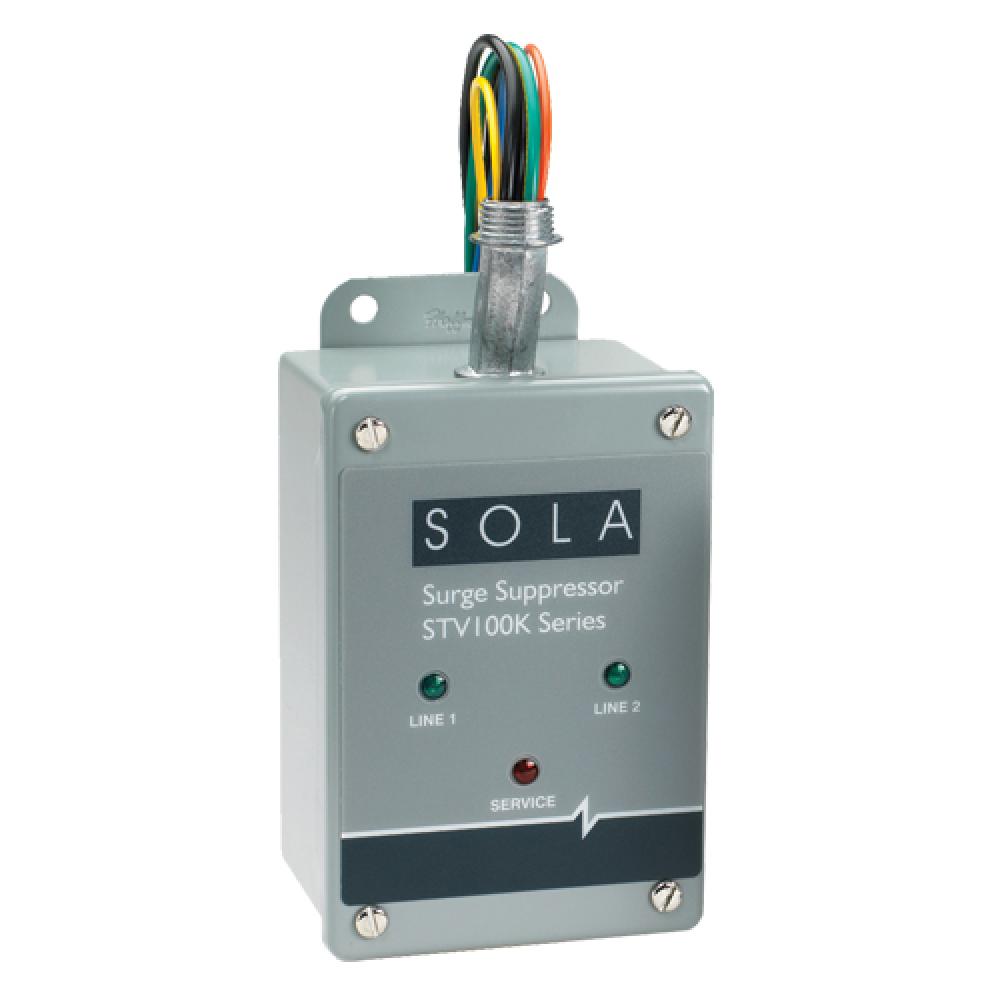

TVSS 120/240V HARD WIRED by SolaHD
$
1,151
30
/ EA
/ 1 EA
- Part Number: STV100K-10S
- UPC: 00783472019700
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (10)
Product Overview
Surge Protection Device Panel Mount, Input Voltage 120/240, Single Phase 3 Wire + Ground
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Surge And Power Protection
Circuit Protection Devices And Accessories
Application:
Distribution Panels (<1200 A), Branch, Lighting and Control Panels, Factory Automation Installations, Dedicated Industrial Equipment
Brand Name:
SolaHD
Connection:
Parallel
Country Of Origin:
MX
Environmental Conditions:
0 to 95% non condensing
Frequency Rating:
47 - 63
Material:
Metal Enclosure, NEMA 12
Mounting:
Flange
Operating Temperature:
-40 to 60
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
Response Time:
<0.5
RoHS Compliance:
Yes
Size:
6.0 W x 4.0 D x 3.2 H
Spec Sheet:
Special Features:
100,000 amp peak current rating provides all mode protection against severe transients, Low clamping levels for more effective protection, 65 kAIC fault current fusing level provides safety and NEC conformance, LED status and audible alarms, Compact, rugge
Standard:
cULus Listed: UL 1449, 3rd Edition, type 2 locations, UL Listed: NEMA type 12 enclosure, CSA Listed: CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant
Stock Type:
Shelf Stock
Type:
STV 100 K Series Surge Protection Devices
Type Of Indicators:
Red & Green LED, Audible Alarm
UNSPSC:
39121610
Voltage Rating:
120
Warranty Link:
Weight:
5.650 L
Manufactured By:
SolaHD
