Und Volt Mon,(98043307) by Time Mark
$
140
00
/ EA
/ 1 EA
- Part Number: 2601-28VDC
- UPC: 00662917007055
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (9)
Product Overview

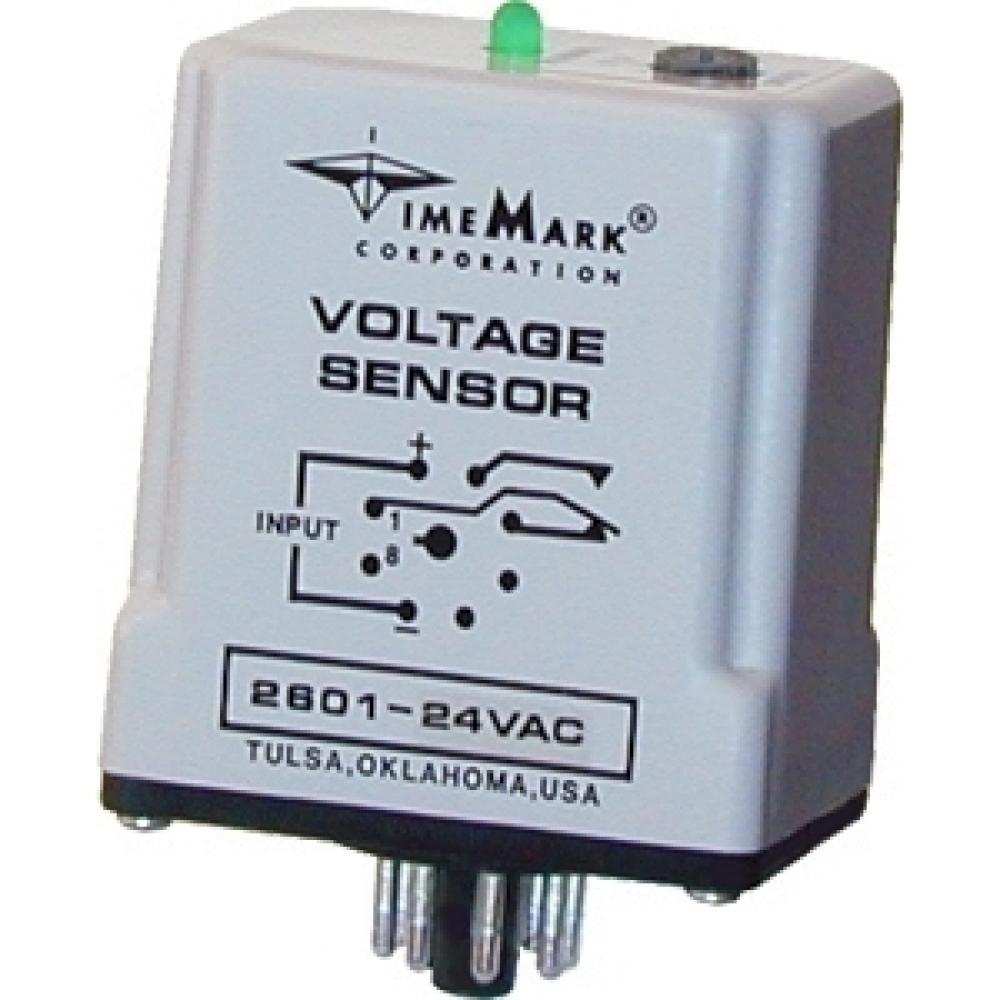

The Model 2601 is a single-set-point under-voltage monitor. Input voltages above set-point will cause the output contact to energize and LED indicator to illuminate. Input voltages below the set-point will cause the output contact to de-energize and extinguish the LED indictor. The Model 2601 is available in AC or DC versions. AC models of the 2601 are not frequency sensitive and can be used on systems from 50 to 400 Hz. The voltage level is screwdriver adjustable over a wide operating range. Requires a standard 8-pin octal socket for mounting
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Relays And Accessories
Amperage Rating:
10A
Brand Name:
Time Mark
Coil:
24 VDC
Connection:
8-Pin
Contact Configuration:
SPDT
Contact Rating:
10A 240 VAC
Country Of Origin:
USA
Enclosure:
ABS Plastic
Line Drawing Link:
Mounting:
8-Pin
Number Of Poles:
1
Operating Temperature:
-20 to +122 F
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
3.52in X 2.44in X 1.75in
Spec Sheet:
Stock Type:
Shelf Stock
Tech Drawing Link:
Type:
Under-Voltage Monitor
UNSPSC:
39122331
Weight:
5.000 O
Manufactured By:
Time Mark
