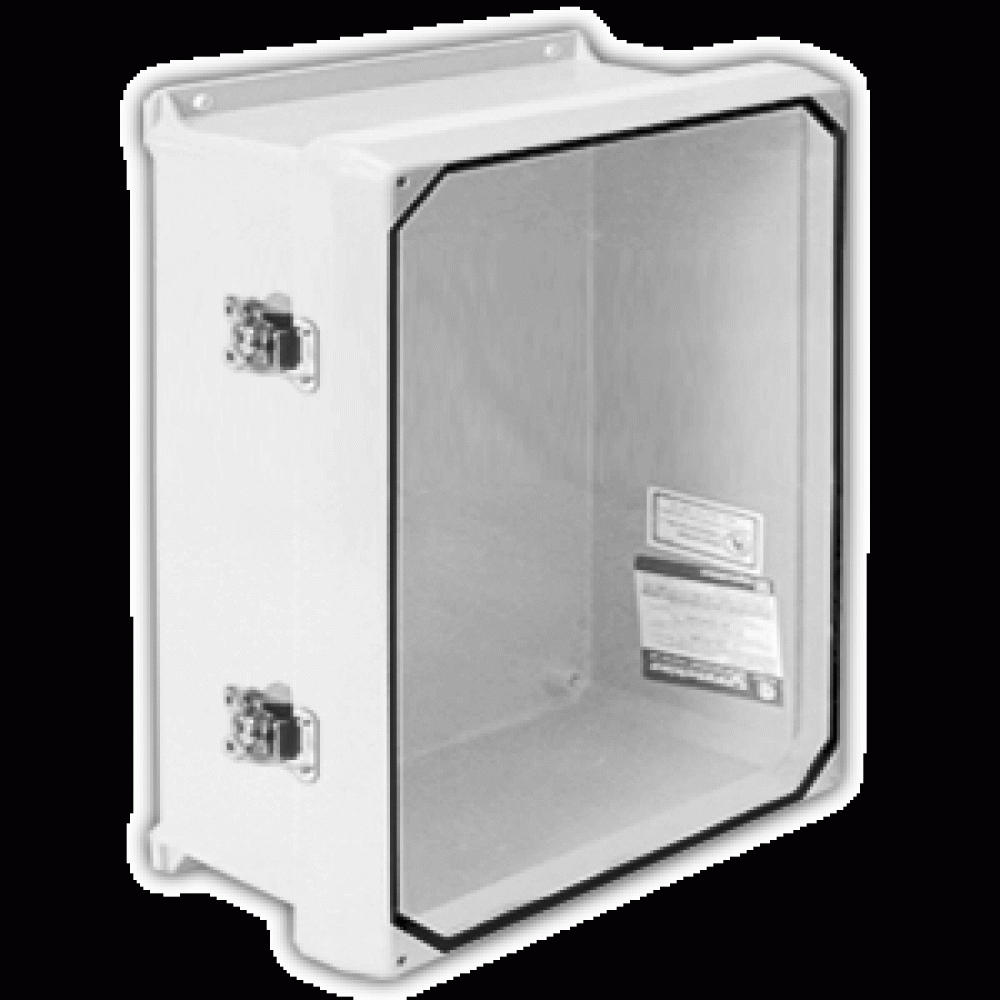

Vynckier; Enclosure; VJ Sereis; Material: Fiberglass Reinforced Polyester; Size: Outside: 13.300 IN Height X 11.310 IN Width X 5.580 IN Depth, Inside: 12 IN Height X 10 IN Width X 4.840 IN Depth; Backplate Part Number (aluminum steel non-metallic): MP1210

Specifications

Details

Electrical Category:

Electrical Boxes And Enclosures

Electrical Subcategory:

Utility Boxes

Electrical Subtype:

Electrical Boxes

Material:

Fiberglass Reinforced Polyester

Size:

Outside: 13.300 IN Height X 11.310 IN Width X 5.580 IN Depth, Inside: 12 IN Height X 10 IN Width X 4.840 IN Depth

Application:

For Use As Electrical Junction Boxes Or Instrumentation Enclosures In Highly Corrosive Environments Including Oil Refineries, Chemical Processing Plants, Waste Water Treatment Facilities, Marine Installations, Electroplating Plants, Agricultural Environmen

Brand Name:

Vynckier

Brochure:

Manufacturer Brochure

Country Of Origin:

USA

MsdsURL:

non-metallic): MP1210A, MP1210S, MP1210N; Frp Ul Type Rating: 3, 3R, 4, 4X, 12, 13; Temperature Resistance (f): -58 To 302 DEG F; Front Panels

Order Minimum:

1.000 PC

Order Multiple:

1.000 PC

Spec Sheet:

Spec Link

Special Features:

Features: The VJ Series Consists Of Seven Enclosure Sizes Ranging From 6.000 IN X 6.000 IN To 18.000 IN X 16.000 IN With Varying Depths, 7 Sizes And A Variety Of Configurations; The VJ Series "HWPL" Enclosures Include One Or Two Stainless Steel Pad

Standard:

IEC 439-1, IEC 529 - Rated IP66-11, EN 50298, CSA Certified Per C22.2 No. 94, CE, UL 508 NEMA 3, 3R, 4, 4X, 12 & 13, CSA 3, 3R, 4, 4X, 12 & 13, AS Australian Standards 3131-1991, EExell, INTEX 84.102.378 U, LLOYD's Register Of Shipping, BASEEFA, KEMA -

Tech Drawing Link:

Tech Drawing

Type:

VJ Sereis

UNSPSC:

39121303

Weight:

6.300 L

Manufactured By:

Vynckier Enclosure Systems
