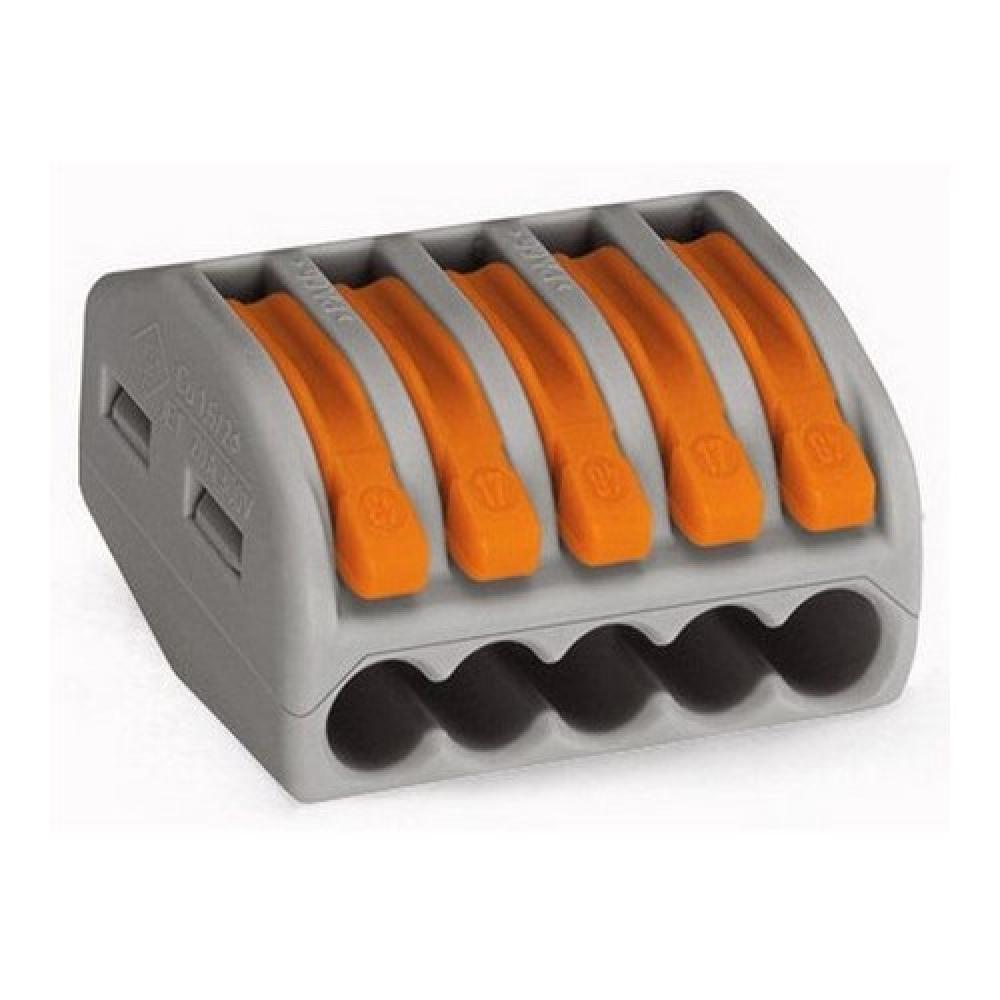

LEVER-NUTS SPLICING CONNECTOR,5 CNDTR by WAGO Corp
Call For Price
- Part Number: 222-415
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Wago 222-415 LEVER-NUTS Splicing Connector, 222 Series, Compact, With Levers, 1.047 IN Width X 0.807 IN Depth X 0.571 IN Height, Cage Clamp Connection, Wire Size: 28 - 12 AWG, 5 Conductor, 5 Pole, Gray With Orange Levers, 400 V, UL: 600 V, 32 AMP, UL: 20 AMP, 85 DEG C Maximum Continuous Usage, Pollution degree: 2, Fine Stranded Wire, Strip Length: 0.37 IN, C/US UL E69654 Listed, RoHS Compliant, ABS 10-HN17750340X, ENEC15 DK140137-01, PSE JET0695-43040-1001, For Wide Range Of Wire Sizes, Combination Of Different Wire Sizes And Types In One Connector, Wiring Of Flexible Conductors In A Junction Box
Specifications
Details
Automotive Category:
Automotive Batteries /vendors/vendorImages
Automotive Subcategories:
Automotive Battery Clamps /vendors/vendorImages
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Electrical Subtype:
Wire Connectors
Color:
Gray With Orange Levers
Voltage Rating:
400 V, UL: 600 V
Amperage Rating:
32 AMP, UL: 20 AMP
Application:
For Wide Range Of Wire Sizes, Combination Of Different Wire Sizes And Types In One Connector, Wiring Of Flexible Conductors In A Junction Box
Brand Name:
Wago
Connection:
Cage Clamp
Country Of Origin:
DE
Environmental Conditions:
Pollution degree: 2
Number Of Conductors:
5
Number Of Poles:
5
Order Minimum:
40.000 EA
Order Multiple:
40.000 EA
RoHS Compliance:
Contact Manufacturer
Special Features:
Spring pressure connection technology; Small space consumption; Built-in test point; Protection against electrical shock, touch safe; Low installed cost and safe operation; Maintenance-free connection; Reusable connector; Wiring method: e+f; 1 potential; 4
Sub Brand:
LEVER-NUTS
Temperature Rating:
85 DEG C Maximum Continuous Usage
Type:
222 Series Compact Splicing Connector With Levers
UNSPSC:
39121409
Wire Size:
28 - 12
Wire Type:
Fine Stranded
Manufactured By:
WAGO Corp
