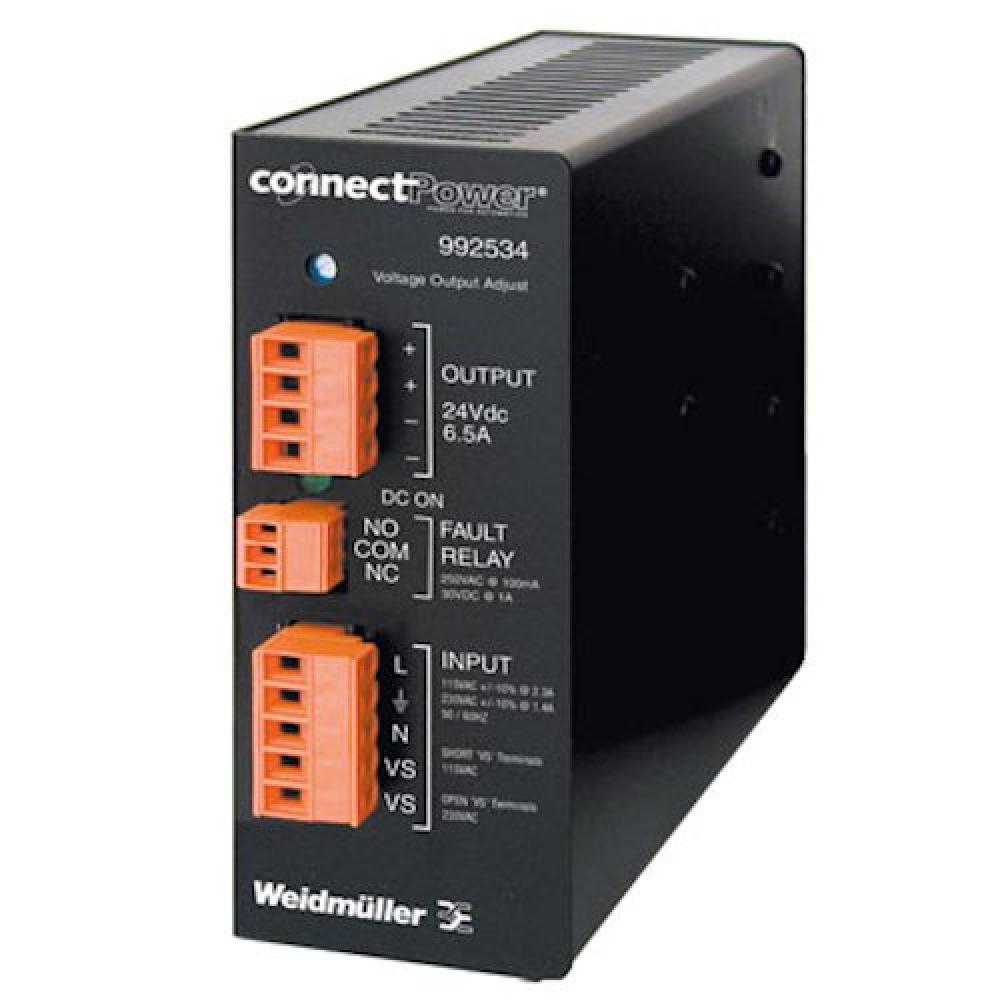

Weidmueller 9925340024 Power Supply Unit, Switch Mode, Voltage Rating: Input: Min 85/138 VAC, Max 195/250 VAC, Typical 115-230 VAC, Output: 24-28 VDC, Input: 2.9 AMP at 115 VAC, 1.45 AMP at 230 VAC, Output: 6.5 AMP, 156 WTT, 50/60 HZ Frequency, 1 Ph, 6.3 AMP Fuse, 0.85 Efficiency, Mounting: Horizontally on TS 35 Terminal Rail, Cable Size: Input: 26 - 12 AWG/ (0.13 - 4) SQ-MM, Output: 26 - 12 AWG/ (0.13 - 4) SQ-MM, Environmental Conditions: Operating Temperature: 0 - 50 DEG C, Storage Temperature: -40 - 85 DEG C, Humidity at Operating Temperature: 20-85 PCT RH Without Condensation, Humidity at Storage Temperature : 20-90 PCT RH Without Condensation, 57 MM Length, 175 MM Width, 127 MM Height, Screw Connection, 6000 MFD Max. Capacitance At Output, Overload Protection: Overload Current And Surge Protection, Electrical Isolation: Input-Earth: 1.5 KV, Input-Output: 3 KV, Output-Earth: 0.5 KV, I/O rail: 4 KV, C/US UL E196651VOL2SEC4 Listed, CSA 200039-1753935CB Certified, CE Certified, PCT ME25, EN 55011, EN 55022, EN 55024, EN 61000-6-2, 3, DIN EN 50178, DIN EN 60950, IEC950, ROHS Compliant
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Voltage Rating:
Input: Min 85/138 VAC, Max 195/250 VAC, Typical 115-230 VAC, Output: 24-28 VDC
Amperage Rating:
Input: 2.9 AMP at 115 VAC, 1.45 AMP at 230 VAC, Output: 6.5 AMP
Cable Size:
Input: 26 - 12 AWG/ (0.13 - 4) SQ-MM, Output: 26 - 12 AWG/ (0.13 - 4) SQ-MM
Environmental Conditions:
Operating Temperature: 0 - 50 DEG C, Storage Temperature: -40 - 85 DEG C, Humidity at Operating Temperature: 20-85 PCT RH Without Condensation, Humidity at Storage Temperature : 20-90 PCT RH Without Condensation
Mounting:
Horizontally on TS 35 Terminal Rail
Special Features:
Green LED Status indication; Includes Varistor
Type:
Switch Mode Power Supply Unit
Manufactured By:
Weidmuller Inc.
